Bentonite Dryer
Industrial Anti-Caking Rotary Dryer for Viscous Bentonite Clay Activity Retention Drying
Bentonite Dryer is a professional industrial drying equipment specially customized for high-viscosity active bentonite clay. It stably reduces 25%-35% high moisture raw bentonite to 3%-6% industrial standard moisture, perfectly retaining the water absorption and expansion activity of bentonite for drilling mud, chemical filler and fine processing industries.
Activity Retention
Anti-Caking
Anti-Stick

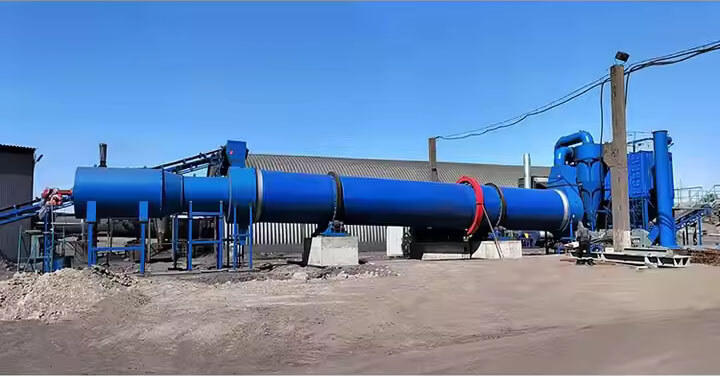

What is Bentonite Dryer?
Bentonite is a special active clay mineral with strong water absorption, expansion and colloidal properties, which is widely used in oil drilling mud, chemical thickener, waterproof materials and fine ceramic industries. Raw mined bentonite contains extremely high natural moisture (25%-35%) and has super viscosity after absorbing water, which is extremely easy to form hard agglomerates and stick to equipment walls. Traditional high-temperature dryers will destroy the internal crystal structure of bentonite, leading to sharp decline in expansion rate and water absorption activity, making the finished product lose industrial use value.
Ordinary rotary dryers lack targeted dispersion structure, resulting in uneven drying, serious fine powder loss and unstable finished product quality. Our upgraded Industrial Bentonite Dryer adopts industry-specific anti-caking dispersion and low-temperature mild drying process. It forcibly disperses bentonite clusters without damaging mineral activity, realizes uniform deep dehydration, and strictly controls drying temperature to retain 100% original physical and chemical properties of bentonite. With low loss, high efficiency and stable activity retention, it is the dedicated supporting equipment for high-quality bentonite deep processing.
Contents

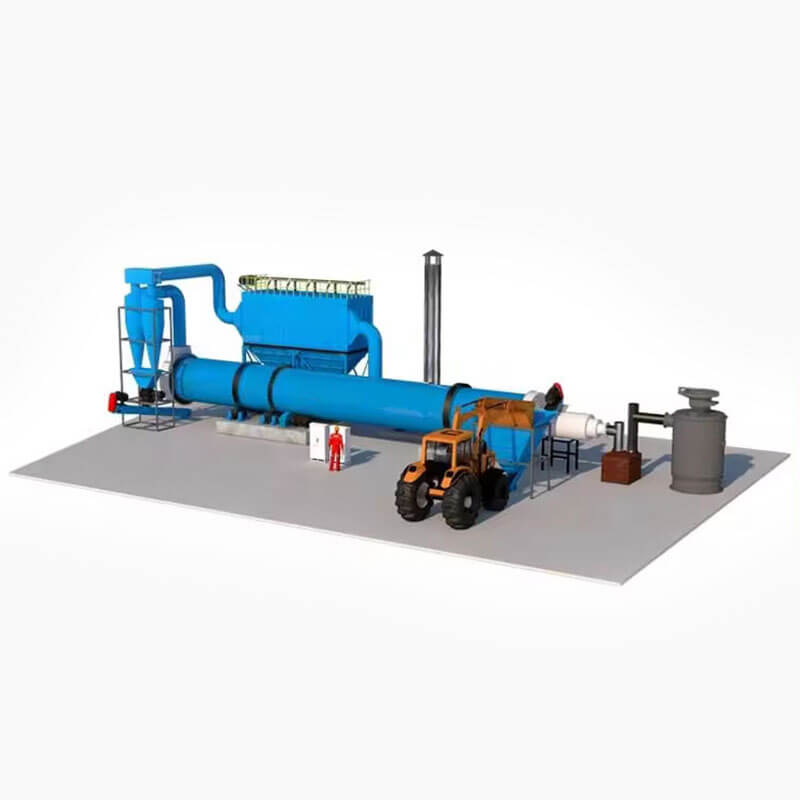

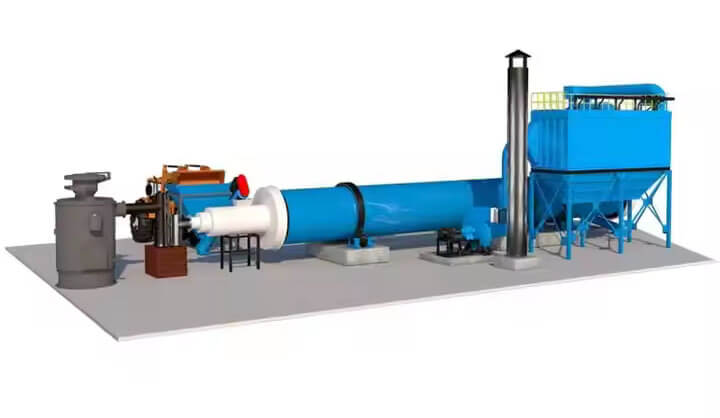

Complete Equipment Composition of Bentonite Dryer
1. Exclusive Anti-Caking Crushing Rotary Drum (Core Upgrade)
Aiming at the super viscous and agglomerating characteristics of wet bentonite, the core drum is equipped with customized flexible crushing and anti-stick lifting plates. During operation, it continuously breaks large bentonite clusters and strips sticky materials on the drum wall, completely eliminating drying dead zones and material accumulation. The special curved material flipping structure forms a uniform material curtain, ensuring full contact between bentonite particles and hot air, realizing uniform dispersion and synchronous dehydration of materials.
2. Viscous Material Anti-Blocking Feeding System
Matched with professional sealed quantitative feeding device for high-viscosity bentonite. The variable-frequency speed regulation automatically adapts to different moisture and fluidity of raw bentonite, avoiding feeding blockage and material bridging caused by high viscosity. Continuous and uniform feeding maintains stable heat exchange balance inside the drum, ensuring consistent drying effect and activity of each batch of bentonite finished products.
3. Low-Temperature Gradient Activity Protection Drying System
Adopting exclusive low-temperature gradient drying process (60-120℃) for bentonite, abandoning the high-temperature baking mode of ordinary dryers. The three-stage process of low-temperature pre-dehydration, medium-temperature uniform drying and constant-temperature activity shaping removes surface free water and internal bound water step by step. It effectively prevents high-temperature damage to bentonite crystal structure, completely retaining expansion, water absorption and colloidal activity of raw ore.
4. High-Precision Fine Powder Recovery System
High-value bentonite fine powder is easy to float and lose during drying. The equipment is equipped with cyclone separation and pulse bag dust removal integrated device, with a material recovery rate of up to 99.9%. It fully recycles overflow fine bentonite powder, greatly reducing raw material waste and improving enterprise economic benefits. The fully sealed micro-negative pressure operation realizes dust-free and environmentally friendly production.
5. Waste Heat Circulation Energy-Saving Device
Equipped with intelligent waste heat recovery and circulation system, which recycles waste hot air after heat exchange for secondary heating. It effectively reduces fuel and power consumption, improves thermal efficiency by more than 35%, and cuts long-term operating costs. The optimized hot air circulation path avoids local overheating of materials and further guarantees the activity stability of bentonite.
6. Bentonite Dedicated PLC Intelligent Control System
Presets exclusive drying parameter database for sodium-based and calcium-based bentonite. The system intelligently adjusts drum speed, hot air temperature and air volume in real time according to raw material moisture and viscosity. It has overheating protection, blockage alarm and fault self-diagnosis functions, effectively avoiding material activity failure caused by temperature deviation, and supporting 24-hour unmanned stable production.

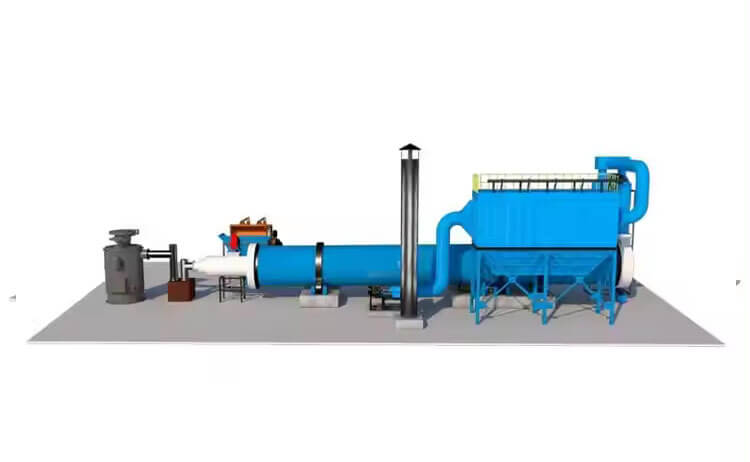

Core Product Advantages of Bentonite Dryer
1. Professional Anti-Caking & Anti-Stick, Zero Dead Zone Drying
Customized crushing and dispersion structure for bentonite’s super viscosity thoroughly solves the industry pain points of material agglomeration and wall sticking. It ensures that every bentonite particle is fully flipped and contacted with hot air, eliminating internal wet cores and uneven drying. The finished bentonite has loose texture and uniform particle size without block residue.
2. Low-Temperature Drying, 100% Activity Retention
Different from ordinary high-temperature dryers that damage activity, the low-temperature gradient mild drying process protects the internal mineral crystal structure of bentonite. It perfectly retains the original water absorption, expansion rate and colloidal properties of bentonite, ensuring that the finished product fully meets the strict index requirements of oil drilling mud, chemical fillers and high-end waterproof materials.
3. Ultra-Low Fine Powder Loss & High Yield
Equipped with a complete high-precision powder recovery system, the fine powder recovery rate reaches 99.9%, almost no loss of high-value bentonite raw materials. Compared with traditional drying equipment, it greatly improves material utilization rate and finished product yield, bringing significant cost-saving benefits for long-term mass production.
4. Precise Moisture Control & Stable Finished Quality
The intelligent temperature and humidity control system stably controls the finished bentonite moisture at 3%-6% with ultra-small batch error. The dried bentonite has stable physical and chemical indexes, no agglomeration after storage, and no attenuation of activity, which can directly meet the standard of industrial fine processing and commercial sales.
5. Strong Material Adaptability & Wide Application
It is suitable for drying all types of bentonite materials, including sodium bentonite, calcium bentonite, activated bentonite and drilling-grade bentonite. It can adapt to raw materials with different moisture content and viscosity, realizing one machine for multiple purposes, and meeting the diversified production needs of mineral processing, chemical and engineering enterprises.
6. High Energy Efficiency & Low Operating Cost
The closed waste heat circulation and high-efficiency heat exchange structure greatly improve thermal efficiency, with energy saving rate 35% higher than traditional bentonite drying equipment. The equipment has reasonable structure, low failure rate and few vulnerable parts, which is convenient for daily maintenance and effectively reduces long-term operation and maintenance costs.
Working Principle & Production Process of Bentonite Dryer
Working Principle
The Industrial Bentonite Dryer adopts anti-caking forced dispersion + low-temperature gradient activity protection drying principle exclusive for high-viscosity bentonite. High-moisture wet bentonite is stably and quantitatively sent into the rotary drum through the anti-blocking feeding system. The built-in crushing and anti-stick mechanism continuously breaks bentonite agglomerates and cleans wall-sticking materials to ensure loose material state.
Through three functional stages of low-temperature pre-dehydration, medium-temperature uniform heat exchange and constant-temperature activity shaping, the moisture of bentonite is removed step by step at a controllable mild temperature. The fine powder generated during drying is fully recycled by the dust recovery system to avoid loss. The whole process avoids high-temperature damage to bentonite activity, realizing high-efficiency, low-loss and high-quality drying processing while completely retaining the industrial application performance of bentonite.
Standard Production Flow
Wet Bentonite Feeding → Variable-Frequency Quantitative Conveying → Forced Crushing & Anti-Stick Dispersion → Low-Temp Gradient Activity Protection Drying → Fine Powder Full Recovery → Waste Heat Circulation Utilization → Dry Bentonite Discharging → Industrial Fine Processing & Commercial Application

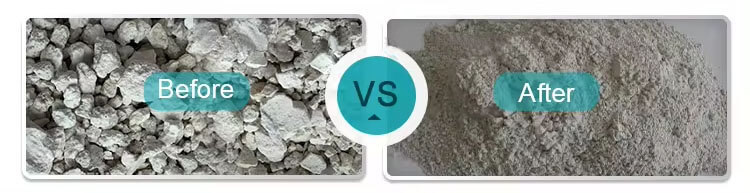

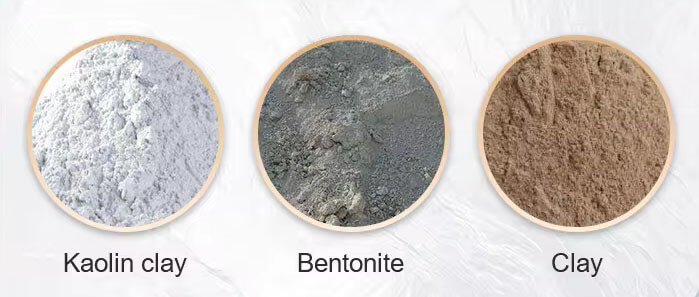

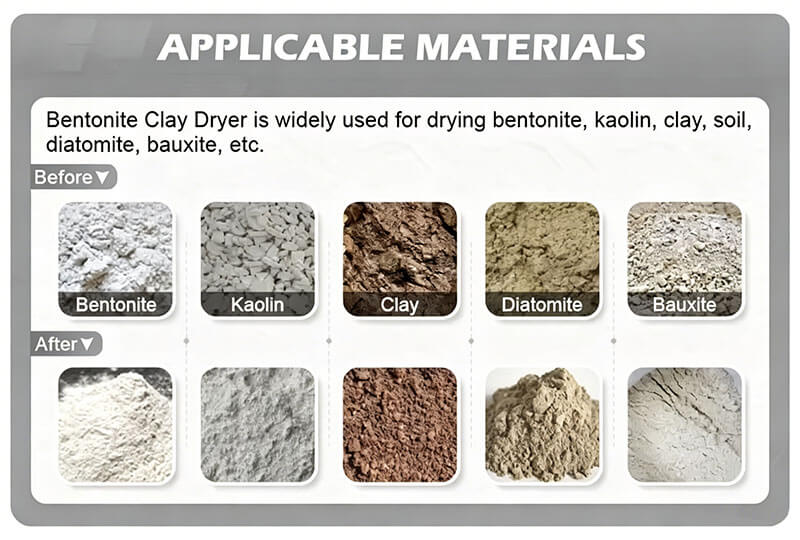

Application Scenarios of Bentonite Dryer
This high-precision Bentonite Dryer is specially designed for high-value bentonite mineral processing, widely used in oil field drilling engineering, chemical raw material processing, building materials waterproof industry, fine ceramic manufacturing and environmental protection filling industries. It accurately solves the problems of activity attenuation, low yield and unstable quality in traditional bentonite drying. The finished active bentonite can be directly used for drilling mud preparation, chemical thickener production, waterproof coating processing and high-end ceramic raw materials, providing core guarantee for high-quality bentonite product production.
Core Application Fields: Oilfield drilling bentonite processing, chemical active bentonite production, waterproof material raw material drying, fine ceramic mineral processing, industrial filler manufacturing

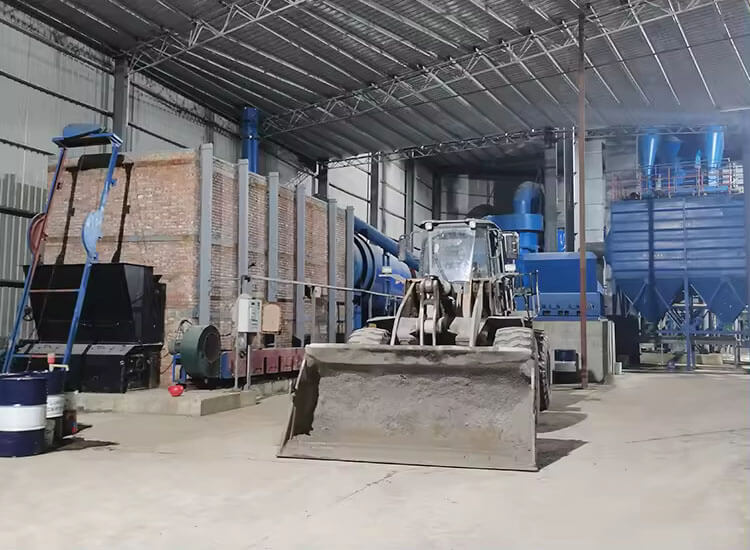

Global Project Cases Of Bentonite Dryer
Case 1: 12T/H Drilling Grade Bentonite Drying Project | Malaysia Oilfield Material Factory
Project Info: The customer produces special bentonite for oilfield drilling mud, requiring strict retention of expansion and water absorption activity. Traditional high-temperature dryers lead to serious activity attenuation and unqualified mud performance. Our low-temperature protection dryer stably controls drying temperature, 100% retains bentonite activity, finished moisture is stable at 4%, and the product fully meets oilfield industrial standards with zero unqualified rate.
Case 2: 8T/H High-Purity Activated Bentonite Project | Thailand Chemical Raw Material Plant
Project Info: The customer’s activated bentonite is used for chemical thickeners and cosmetic fillers, requiring ultra-low powder loss and stable quality. Our equipment is equipped with a high-precision recovery system with a 99.9% material recovery rate, no waste of high-value raw materials. The mild drying process maintains the purity and colloidal properties of activated bentonite, helping customers occupy the high-end chemical raw material market.
Case 3: 15T/H Building Waterproof Bentonite Project | Indonesia Building Materials Enterprise
Project Info: The customer processes bulk wet calcium-based bentonite with high viscosity and high moisture, prone to caking and uneven drying. Our exclusive anti-caking dispersion structure completely solves material accumulation problems. The energy-saving waste heat circulation system reduces operating costs, and the stable drying quality ensures the waterproof performance of downstream products, with continuous and stable project benefits.
Technical Parameters of Bentonite Dryer
| Project unit | φ2.0×6m | φ2.5×6.5m | φ2.7×7m | φ3×7m | φ3.2×7m | φ3.6×8m | Φ3.6×12m | |
| Cylinder volume （m3） | 18.84 | 31.89 | 40.5 | 49.46 | 56.26 | 81.38 | 118 | |
| Cylinder rotation speed (rpm) | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | |
| Material residence time (min) | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | |
| Raw material moisture (%) | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | |
| Final moisture content (%) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
| Maximum intake temperature (℃) | 750-900℃ | 750-900℃ | 750-900℃ | 750-900℃ | 750-900℃ | 750-900℃ | 750-900℃ | |
| Capacity (T/H) | Slag | 20-25 | 25-30 | 30-35 | 35-40 | 40-45 | 50-65 | 70-85 |
| Fly ash | 10-17 | 17-21 | 20-25 | 23-27 | 25-30 | 30-45 | 45-63 | |
| Yellow sand | 20-27 | 25-40 | 27-45 | 30-45 | 35-50 | 55-75 | 75-99 | |
| Motor Type | Yr160m-4 | Yr132m-4E | Yr160m-4 | Yr160m-4 | Yr132m-5E | Yr160m-4E | Yr160m-4E | |
| Motor Power (Kw) | 7.5×2 | 11×2 | 7.5×4 | 7.5×4 | 11×4 | 15×4 | 18.5×4 | |
| Gear Box model | XWD-6 | XWD-6 | XWD-6 | XWD-6 | XWD-6 | XWD-8 | XWD-8 | |
| Speed Ratio of gear box | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | |

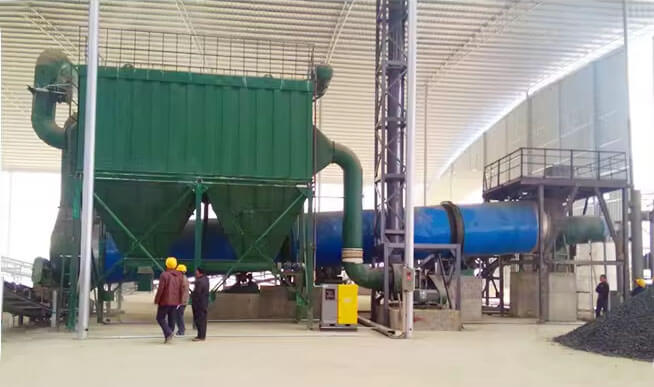

Get Custom Bentonite Drying Solution
Our professional Bentonite Dryer breaks through the technical defects of ordinary clay dryers that are prone to caking and activity loss. With core advantages of anti-caking dispersion, low-temperature activity protection, ultra-low powder loss and high energy efficiency, it provides stable and high-quality drying solutions for global bentonite mineral processing, chemical and oilfield engineering enterprises, helping customers improve finished product grade, reduce raw material loss and enhance market competitiveness.
Contact us now to get free model selection, process customization and accurate project quotation!
FAQs of Bentonite Dryer
Q1: What types of bentonite can this dryer process?
A: It adapts to all mainstream industrial bentonite materials, including sodium bentonite, calcium bentonite, activated bentonite and drilling-grade bentonite. It is a professional dedicated drying equipment for high-value bentonite deep processing.
Q2: Will drying damage the activity of bentonite?
A: No. Adopting 60-120℃ low-temperature gradient mild drying technology, it avoids high-temperature damage to bentonite crystal structure, completely retains water absorption, expansion and colloidal activity, and ensures the finished product meets all industrial application standards.
Q3: How to solve the problem of bentonite caking and wall sticking?
A: Equipped with customized anti-caking crushing and anti-stick lifting plate structure, it forcibly disperses bentonite clusters and cleans wall-sticking materials in real time, eliminates drying dead zones, and ensures loose and uniform drying of all viscous bentonite materials.
Q4: What is the moisture standard of finished bentonite?
A: The finished moisture can be adjusted freely between 3%-6%. The standard industrial moisture is 3%-5%, which ensures no agglomeration during storage and stable activity, fully meeting the requirements of drilling mud, chemical and waterproof material production.
Q5: Is there any loss of high-value bentonite powder?
A: Almost no loss. Equipped with a professional full-set fine powder recovery system, the comprehensive material recovery rate is as high as 99.9%, which maximizes the utilization rate of high-value bentonite raw materials and saves production costs.
