Box Type Crusher

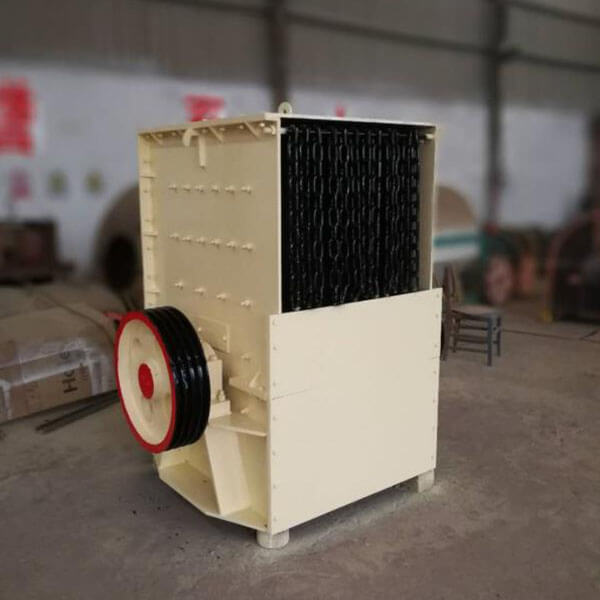

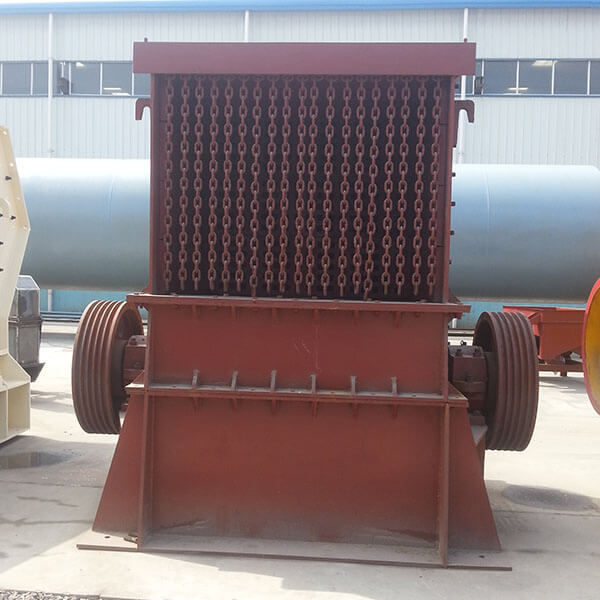

Box Type Crusher – Heavy Duty One-Time Forming Box Hammer Crushing Machine

Box type crusher is a new closed-box heavy-duty crushing equipment. This professional box hammer crusher integrates the core advantages of traditional hammer crusher and impact crusher, realizing one-time molding crushing without secondary processing. It delivers large output, low dust emission and uniform aggregate quality for various stone crushing and solid waste crushing projects.

Closed Box Structure

One-Time Forming

Cost Saving

+86-19103863728

[email protected]

+86-19103863728

[email protected]

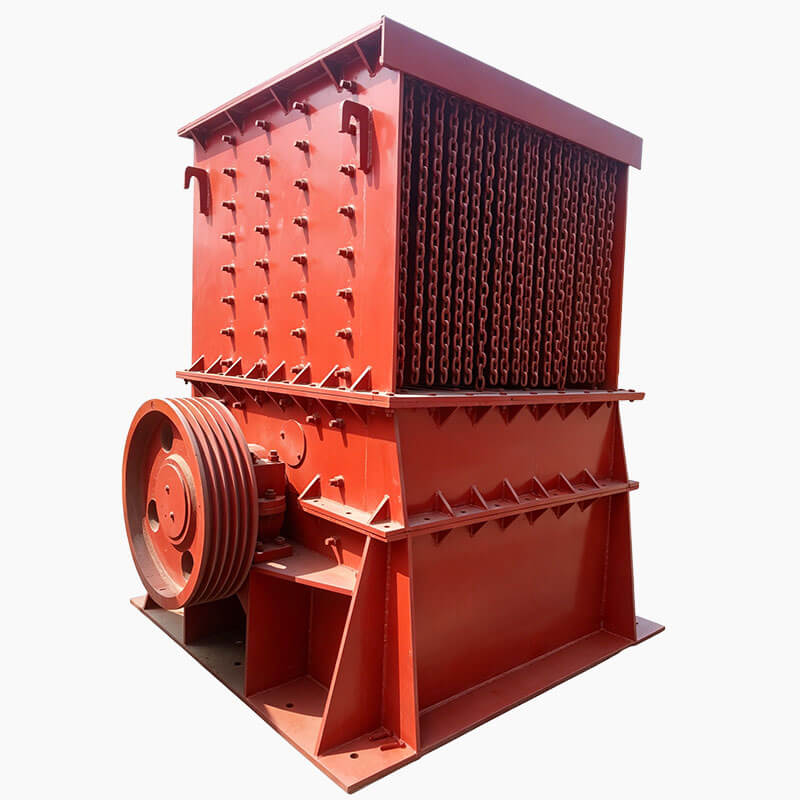

What is Box Type Crusher?

Box Type Crusher, also widely known as box hammer crusher, is an upgraded integrated crushing equipment optimized for large-scale aggregate production. Different from traditional open crushing machines, this heavy-duty box type crusher adopts a fully closed box-type crushing cavity, which effectively controls dust overflow and greatly improves overall crushing efficiency.
This box type crusher completes coarse crushing, medium crushing and aggregate shaping in one step, eliminating the need for secondary crushing equipment. It is widely applicable to limestone, bluestone, granite, basalt, river stone, construction waste and other medium-hard materials. This box hammer crusher serves as the core cost-effective crushing equipment for large quarries, road construction and construction waste recycling projects.

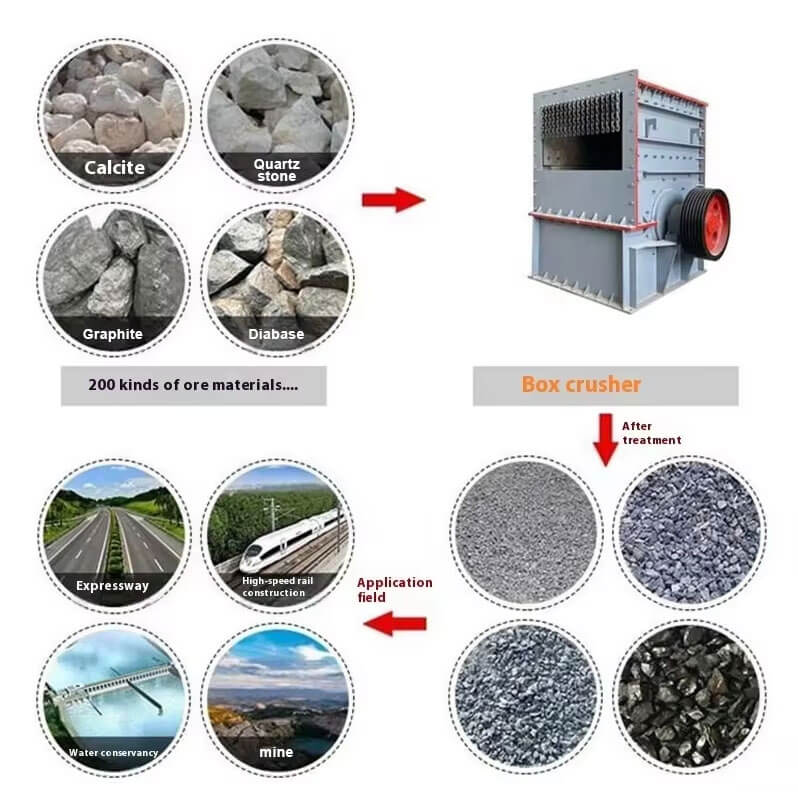

Application of Box Type Crusher

Main Application Fields of Box Type Crusher
  • Large quarry stone crushing and high-quality aggregate production
  • Mining bulk ore and rock one-time forming processing
  • Urban construction waste crushing and resource recycling
  • Highway, railway and municipal engineering stone processing
  • Limestone, bluestone and soft and medium-hard stone crushing
  • Cement plant, building materials and industrial raw material processing

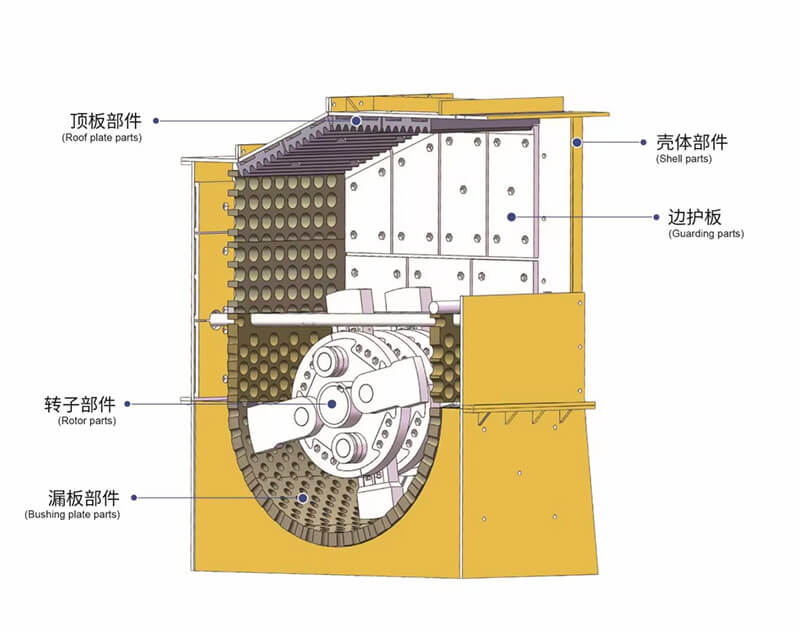

How does a Box Type Crusher work?

Driven by the motor, the internal heavy-duty rotor of the box type crusher rotates at high speed. Bulk materials evenly enter the fully closed crushing cavity of the box hammer crusher from the feeding port.
Materials are strongly impacted, crushed and ground by high-speed rotating hammer heads inside the box type crusher, and collide with the internal counterattack plate for secondary crushing. Qualified fine particles are discharged from the bottom outlet, while unqualified large materials circulate and crush repeatedly in the closed box cavity of the box hammer crusher. The whole process realizes automatic, continuous and efficient one-time forming crushing with low dust and high fineness.

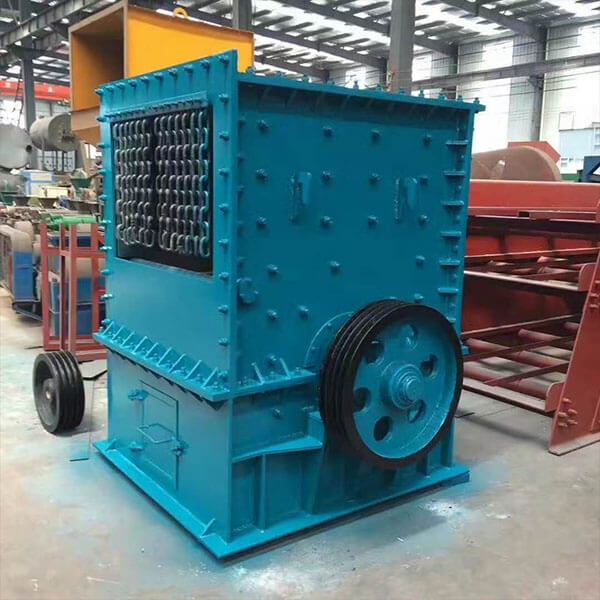

Highlights of Box Type Crusher for sale

Why Choose Our Box Type Crusher
  • Closed Box Structure & Low Dust: Fully enclosed box design avoids material splashing and dust leakage, meeting environmental protection emission standards and improving on-site working conditions.
  • One-Time Forming & Cost Saving: Integrates multi-stage crushing functions, one machine replaces two sets of crushing equipment, greatly reducing equipment investment and site layout costs.
  • Super Large Crushing Capacity: Optimized internal rotor and crushing cavity structure support large feeding size and high hourly output, suitable for large-scale continuous production.
  • Uniform Finished Particle & Low Powder: Internal circulating crushing design realizes repeated material impact and grinding, with uniform finished aggregate and reasonable gradation, high finished product quality.

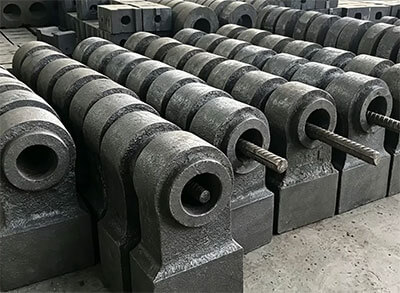

  • Heavy-duty Wear-resistant Design: Equipped with thickened hammer head, high-hardness lining plate and reinforced rotor, it resists high-strength impact and abrasion, with long service life of vulnerable parts.
  • Simple Operation & Easy Maintenance: Integrated body structure, fewer vulnerable parts and convenient daily inspection and replacement, reducing later maintenance time and cost.
  • Wide Working Condition Adaptation: Suitable for fixed crushing plants, open-pit quarries and construction waste on-site crushing, flexible and versatile.

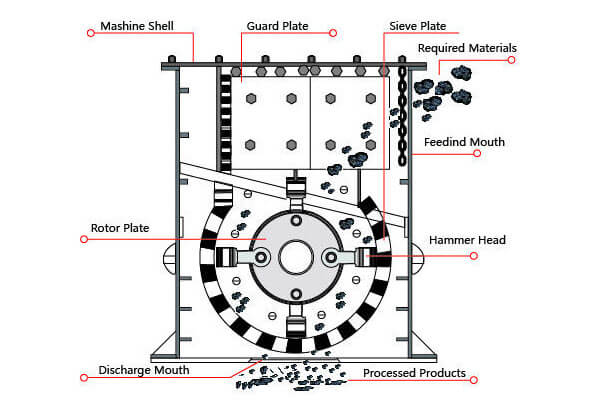

Structural Details & Industrial Build Quality of Box Type Crusher

Box Type Crusher Main Structure
The box type crusher adopts an integrated closed box modular structure, which is the core structural advantage of this box hammer crusher. It consists of a closed box frame, heavy-duty rotor assembly, wear-resistant lining plate, adjustable counterattack plate, feeding port, discharging port, transmission device and safety protection system. All core components are made of high-strength wear-resistant materials, ensuring stable and efficient heavy-load operation of the box type crusher.
  • Integrated Closed Box Frame: Integral welded thick steel plate structure, high overall rigidity, no deformation during strong impact, effectively blocks dust and material splashing, environmental and durable.

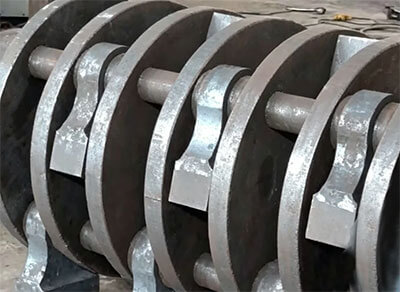

  • Heavy-duty Forged Rotor Assembly: Adopts integral forging rotor with high bearing capacity, matched with multiple groups of thickened hammer heads, providing strong crushing impact force.

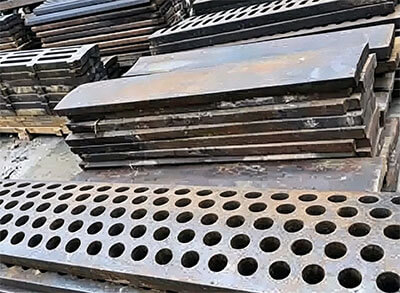

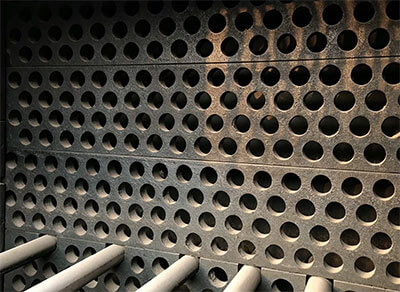

  • Wear-resistant Lining & Counterattack Plate: High manganese steel wear-resistant accessories, anti-impact and anti-abrasion, protect the box body, extend equipment service life and reduce replacement frequency.
  • Adjustable Discharge Structure: Equipped with gap adjustment device, freely control finished particle size, meet different aggregate grading requirements.
  • Stable Transmission System: Optimized belt pulley and transmission structure, stable power output, low vibration and low noise during operation.
  • Safety Protection Device: Equipped with overload protection and anti-jamming structure, effectively avoid equipment damage caused by foreign matter and overload operation.

How to select the Box Type Crusher sizes for your project?

When you want to build a stone crusher plant, there are several important factors to be considered:

1. The maximum stone size before crushing. From this data, the feed opening of jaw crusher can be confirmed;

2. How many tons or cubic meters per hour you want to process?

3. The feeding size of the next crushing stage.

The above three factors need to be considered together. The most important factor is the capacity of jaw crusher, even the stone size is smaller, but in order to reach the capacity, you have to choose a bigger jaw crusher. Meanwhile, you also have to consider the output size of jaw crusher, if it is suitable for the secondary crusher or not. It is a complicated stone crusher plant design, please contact our experienced expert to get more support.

FAQs of Box Type Crusher for sale

Frequently Asked Questions for Box Type Hammer Crusher
  • Q1: What is a box type crusher used for?A1: Box type crusher is a multi-functional one-time forming crushing equipment, mainly used for medium and medium-hard stone crushing, quarry aggregate production and construction waste recycling. This box hammer crusher can complete coarse crushing and shaping independently to replace traditional two-stage crushing lines.
  • Q2: What is the difference between box type crusher and ordinary hammer crusher?A2: The biggest advantage of the box type crusher is the fully closed box structure, which solves the dust problem of ordinary open hammer crushers. Meanwhile, this box hammer crusher has larger output, more uniform finished particles, fewer failures and lower comprehensive investment cost, which is more in line with modern environmental protection and high-efficiency production standards.
  • Q3: Can the discharge particle size of the box crusher be adjusted?A3: Yes. The box type crusher is equipped with a professional gap adjustment device, allowing users to freely adjust the finished particle size within the adjustable range to meet different aggregate grading requirements for construction, road and other projects.
  • Q4: Is the box type crusher environmentally friendly?A4: Absolutely. The fully enclosed box structure of the box hammer crusher effectively prevents dust overflow and material splashing, with low operation noise. This box type crusher can meet regional environmental protection emission standards and is suitable for urban and standardized mining projects.
  • Q5: What materials can the box crusher process?A5: This box type crusher is suitable for limestone, bluestone, river stone, shale, coal gangue, concrete, construction waste and other medium-hard materials. It is not suitable for long-term crushing of super-hard ore such as high-hard granite and basalt.
  • Q6: Is the box crusher easy to maintain?A6: Yes. This box hammer crusher adopts a reasonable integrated structure with fewer vulnerable parts. The openable box body design of the box type crusher facilitates daily inspection, hammer head and lining plate replacement, saving maintenance time and labor cost.
  • Q7: Can I use the box crusher for mobile crushing station?A7: Yes. The integrated and compact body design of the box type crusher supports customized mobile trailer installation, suitable for on-site mobile crushing of construction waste and temporary quarry projects.

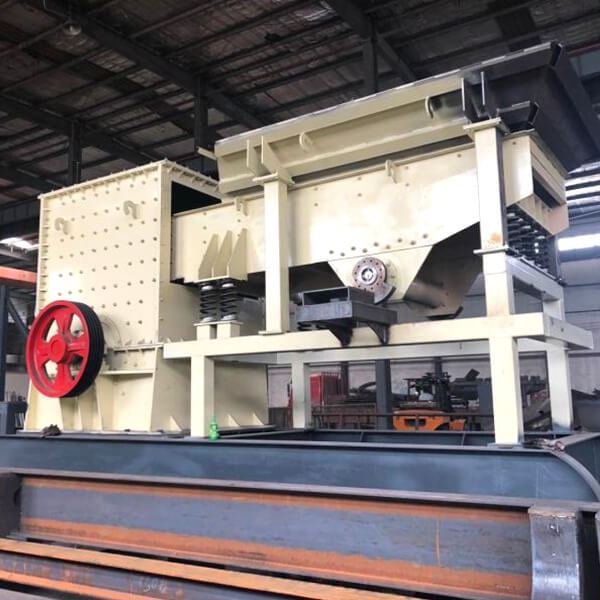

Box Type Crusher Goods Delivery

Based on good quality and decades of experience, the Jaw Crusher which is manufactured by NJMINING was exported to different countries. The Jaw Crusher will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

Box Type Crusher Technical Parameters

Product Parameter Description: Our box type crusher series covers multiple mainstream models to meet different production output and material crushing requirements. Customized configurations for the box hammer crusher are available for special materials and working conditions.



Model
Max Feeding Size (mm)
Discharge Size (mm)
Production Capacity (t/h)
Motor Power (kw)
Overall Dimension (L×W×H) (mm)
Machine Weight (t)
800×800 Box Crusher
350
20-50
50-80
75
2200×1800×1500
7.8
1000×1000 Box Crusher
400
20-60
80-150
110
2600×2100×1800
11.5
1200×1200 Box Crusher
450
30-70
150-220
160
3000×2400×2100
16.2
1400×1400 Box Crusher
500
30-80
220-300
220
3400×2700×2400
22.8
1600×1600 Box Crusher
600
40-100
300-450
2×160
3800×3000×2700
30.5

Note: The actual capacity varies with material hardness, feeding size and discharge fineness. Customized production lines and model configurations are available.

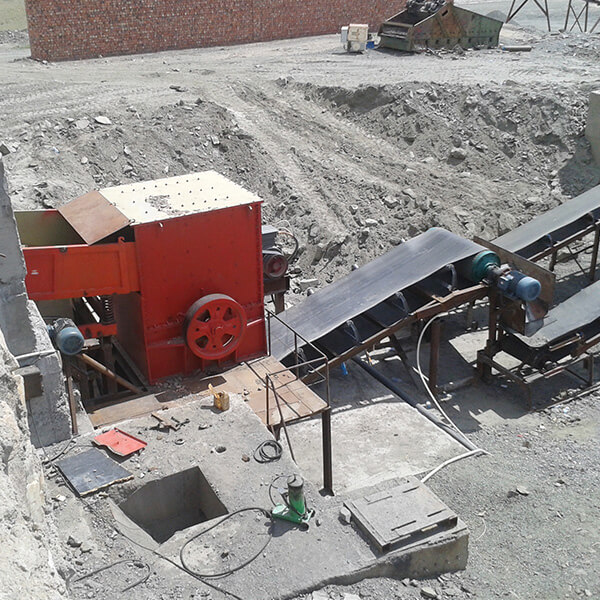

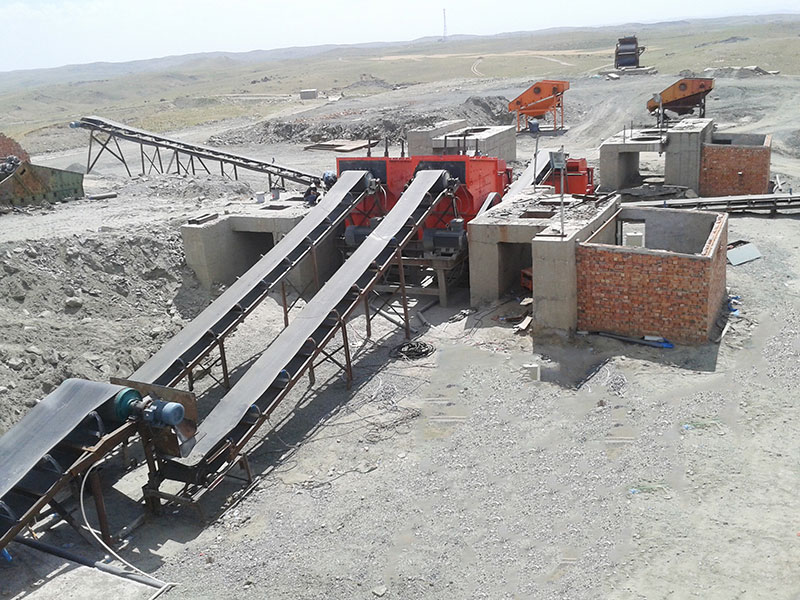

Box Type Crusher Application Case

Our box type crushers have been widely used in domestic and foreign large-scale quarries, mining and construction waste recycling projects. Relying on the unique closed dust-proof structure, super high output and stable one-time forming performance of the box hammer crusher, the equipment maintains long-term continuous and low-failure operation. A large number of real overseas site cases verify the efficient production capacity and reliable quality of our box type crusher.
