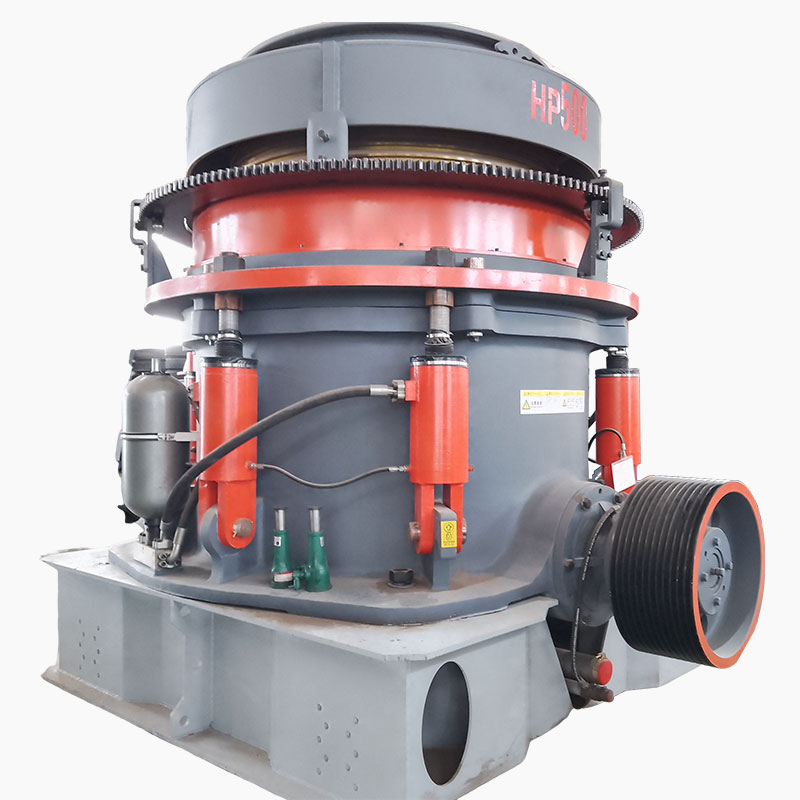

Multi-Cylinder Hydraulic Cone Crusher

• Large-scale mining secondary and tertiary fine crushing of iron ore, copper ore, gold ore and other hard minerals
• High-standard aggregate production for highway, railway, airport and municipal engineering
• Quarry super-hard rock crushing such as granite, basalt, diabase and river stone
• Fixed large-scale crushing plant medium and fine crushing core equipment
• Industrial solid waste and hard construction concrete recycling processing
• Fine material processing for metallurgy, building materials and chemical industry

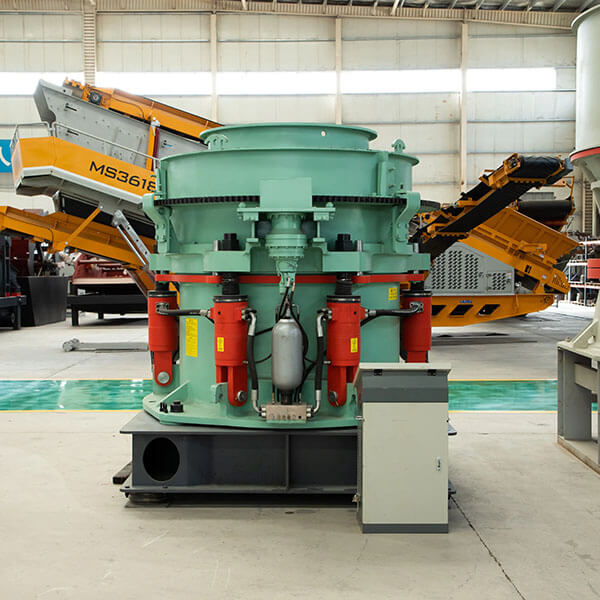

• Multi-Cylinder Hydraulic Combined System: The HP multi-cylinder hydraulic cone crusher is equipped with multiple symmetrically arranged hydraulic cylinders, providing stable and powerful crushing pressure. It effectively improves crushing efficiency and overload protection capacity, adapting to long-term heavy-load crushing of super-hard materials.
• Super High Output & Crushing Efficiency: Optimized rotor stroke, cavity type and rotating speed matching increase material passing capacity greatly. The HP cone crusher features larger processing capacity and higher crushing ratio than traditional cone crushers, improving overall line productivity.
• Perfect Cubic Particle Shaping: Adopts professional lamination layered crushing technology, realizing uniform squeezing and grinding of materials. The finished aggregates have excellent cubic shape, low flakiness content and reasonable gradation, fully meeting high-standard road and construction sand requirements.
• Intelligent Automatic Control System: Equipped with intelligent PLC automatic control system, supporting automatic feeding, constant discharge gap adjustment, overload protection and real-time fault monitoring. It realizes unmanned stable operation and reduces manual operation errors.
• Strong Overload Protection & Low Failure Rate: Multi-cylinder hydraulic linkage protection can quickly release pressure and discharge uncrushable foreign matters, avoiding equipment jamming and damage. The whole machine runs stably with extremely low failure rate in harsh working conditions.
• Low Energy Consumption & Environmental Protection: Optimized power transmission structure reduces invalid energy loss. Equipped with matched dust-proof and noise reduction design, it meets modern environmental protection production standards.
• Easy Maintenance & Long Service Life: Standardized wear-resistant parts and modular structural design simplify daily disassembly and replacement. High-strength wear-resistant liners extend equipment service life and reduce comprehensive operating costs.

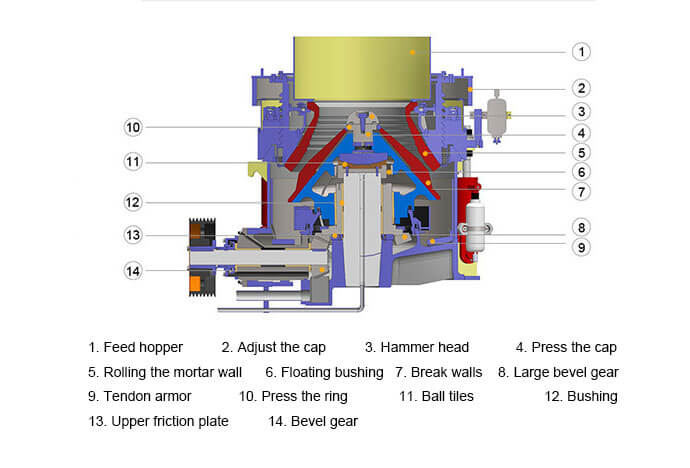

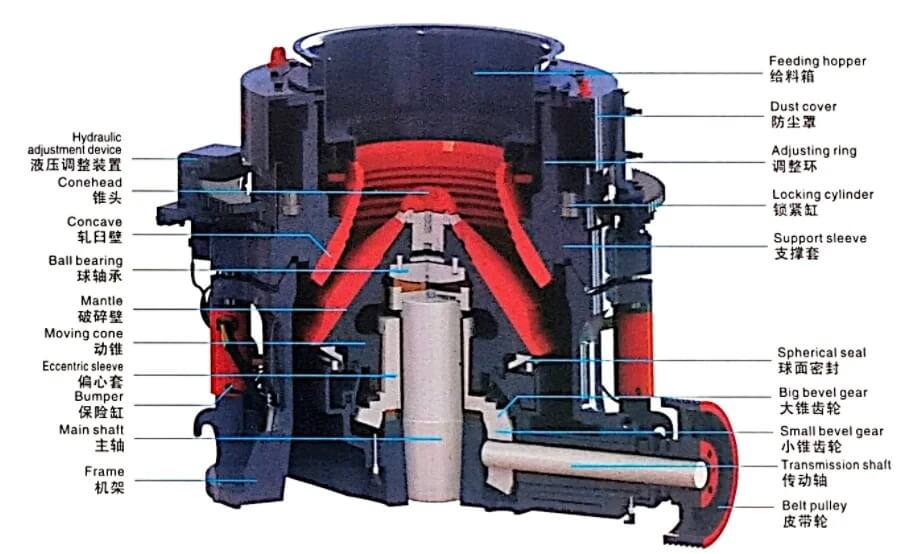

• Heavy-duty Reinforced Frame: Integral cast steel thickened frame with high overall rigidity and strong impact resistance, effectively resisting strong vibration and pressure generated during hard material crushing, ensuring structural stability of the HP cone crusher.
• Precision Transmission & Eccentric Mechanism: High-precision bevel gear pair drives the eccentric sleeve to operate stably, providing uniform and powerful swing stroke for the movable cone, ensuring consistent material crushing effect.
• High Wear-resistant Crushing Liner: Mantle and concave are made of high manganese steel alloy material with super compression resistance and abrasion resistance, suitable for long-term continuous crushing of various super-hard ores and stones.

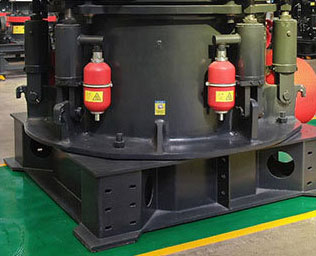

• Multi-cylinder Hydraulic Protection System: Multiple groups of hydraulic cylinders are symmetrically distributed around the machine body, forming an all-round overload protection structure. It can quickly release pressure to protect the main machine when foreign matter enters the crushing cavity.
• Intelligent Hydraulic Adjustment Device: The independent hydraulic station supports automatic discharge gap adjustment and quick cavity clearing, realizing one-key adjustment of particle size and greatly improving operation efficiency.

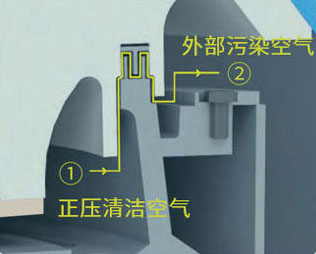

• Full Automatic Lubrication System: Circulating grease lubrication and closed dust-proof structure isolate external dust, ensure sufficient lubrication of core bearings and transmission parts, and extend equipment service life.
• Intelligent PLC Control Cabinet: Real-time monitoring of current, pressure, temperature and equipment operation status, with automatic alarm and protection functions, realizing intelligent and safe production.

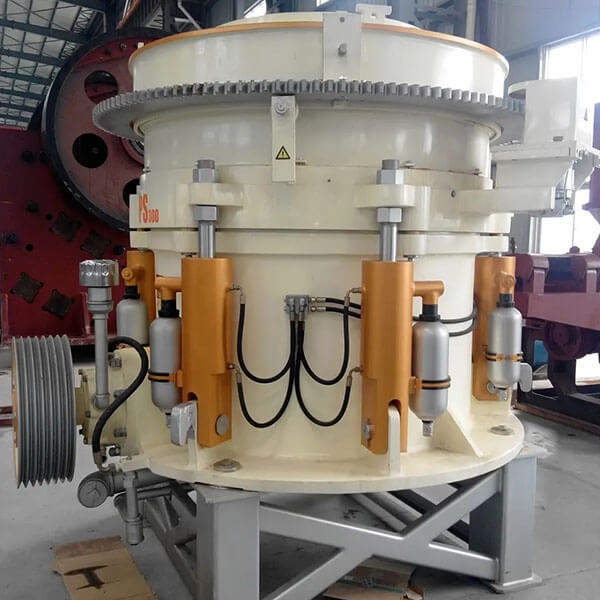

When you want to build a stone crusher plant, there are several important factors to be considered:

1. The maximum stone size before crushing. From this data, the feed opening of jaw crusher can be confirmed;

2. How many tons or cubic meters per hour you want to process?

3. The feeding size of the next crushing stage.

The above three factors need to be considered together. The most important factor is the capacity of jaw crusher, even the stone size is smaller, but in order to reach the capacity, you have to choose a bigger jaw crusher. Meanwhile, you also have to consider the output size of jaw crusher, if it is suitable for the secondary crusher or not. It is a complicated stone crusher plant design, please contact our experienced expert to get more support.

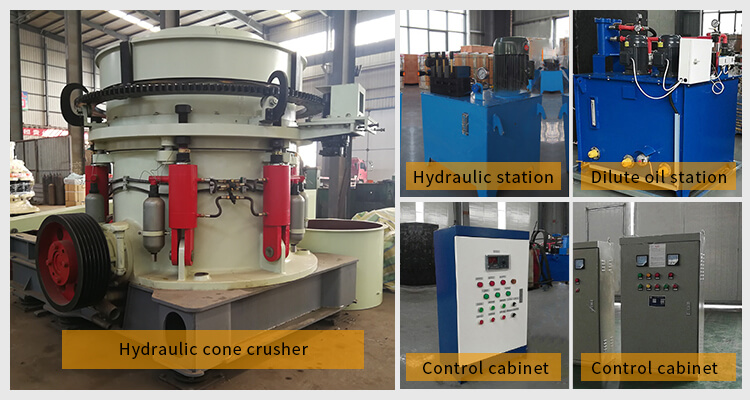

Based on good quality and decades of experience, the Compound Symons Cone Crusher which is manufactured by NJMINING was exported to different countries. The Jaw Crusher will be packed and loaded in our factory, and then be shipped to our clients safe and sound.
