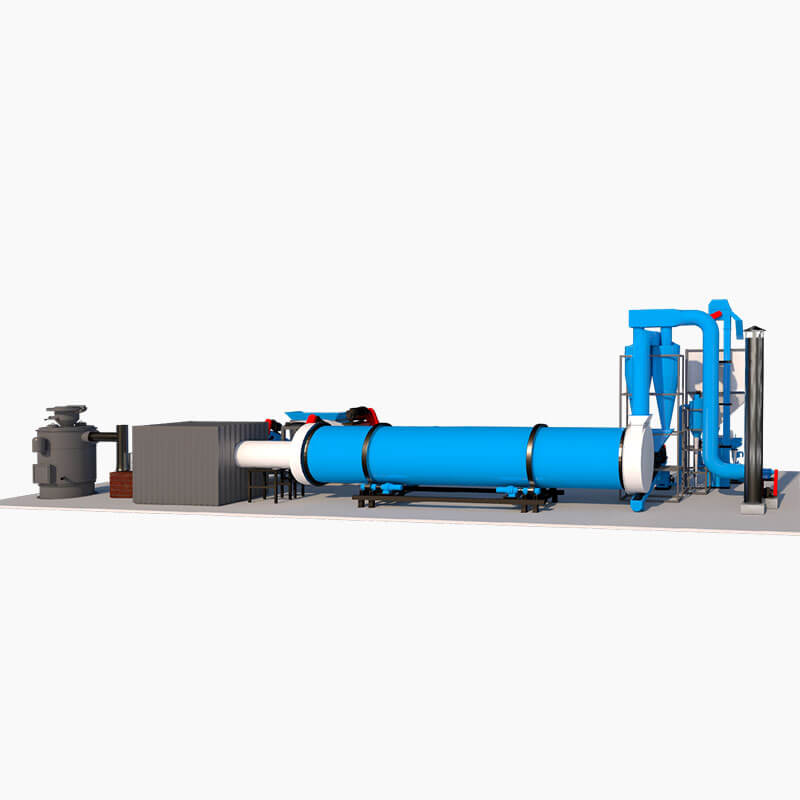

Distiller’s Grains Dryer
Industrial Anti-Stick DDGS Rotary Dryer for Distillery Residue Recycling
Distiller’s Grains Dryer is a professional rotary drying equipment specially customized for high-sugar, high-viscosity distiller residues (corn, sorghum, rice distiller grains), also known as DDGS dryer. This machine adopts special anti-stick wall structure and staged low-temperature drying technology, reducing 60%-65% high moisture to commercial 10%-15%. It effectively avoids wall sticking and material coking, retains maximum crude protein and nutritional ingredients, and produces high-quality loose DDGS feed materials.
Anti-Stick
Anti-Coking
Stable Moisture
What is Distiller’s Grains Dryer?
Distiller’s grains are the main solid waste by-products produced during liquor and ethanol distillation, mainly processed from corn, sorghum, rice and other grain raw materials. Rich in crude protein, crude fat, dietary fiber and residual organic nutrients, distiller grains are high-quality raw materials for animal feed, organic fertilizer and biomass fuel, with extremely high recycling economic value.
Fresh wet distiller grains have a moisture content of 60%-65%, containing a large amount of residual sugar and viscous colloid. They are extremely prone to wall sticking, agglomeration, acid deterioration and bacterial growth within a short time, resulting in resource waste and environmental pollution. Ordinary rotary dryers and brewer spent grain dryers cannot adapt to its high-sugar characteristics: high-temperature drying easily causes material coking, blackening and protein denaturation; smooth drum walls lead to serious material adhesion, low drying efficiency and poor finished product quality. Our dedicated distiller’s grains DDGS dryer adopts targeted anti-stick and anti-coking design, perfectly solving various industry pain points and realizing high-value recycling of distillery residues.
Contents

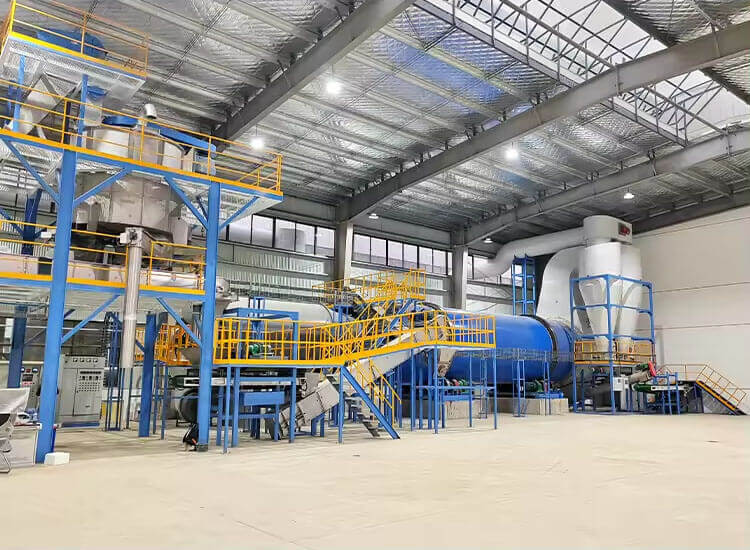

Complete Equipment Composition of Distiller’s Grains Dryer
1. DDGS Special Anti-Stick Rotary Drum (Core Structure)
The drying drum is professionally optimized for high-sugar viscous distiller grains, equipped with customized wave-type anti-stick lining and combined material lifting plates. Different from ordinary flat drum structure, it can automatically scrape and separate sticky materials adhering to the drum wall during rotation, completely solving wall sticking and accumulation problems. The multi-angle dispersion lifting structure realizes uniform material scattering, eliminates drying dead zones, and avoids local high-temperature coking of distiller grains.
2. Staged Low-Temp Anti-Coking Heating System
Abandons traditional single high-temperature baking mode, adopts three-stage gradient constant-temperature drying: low-temperature pre-dehumidification to remove surface moisture and reduce material viscosity, medium-temperature uniform dehydration for deep drying, and low-temperature cooling shaping to stabilize moisture. The whole process avoids local overheating, effectively prevents high-sugar distiller grains from coking and blackening, and completely retains protein and nutritional activity.
3. Loose Pre-Breaking Feeding Device
Customized for easily agglomerated wet distiller grains, the integrated pre-breaking and uniform feeding device crushes large caked grain clusters in advance, disperses stacked materials into loose state, and realizes quantitative and uniform feeding. It avoids material accumulation and uneven drying caused by intermittent feeding, and lays a foundation for high-quality DDGS finished products.
4. Circulating Waste Heat Recovery & Dust Purification System
Equipped with closed circulating waste heat recovery device, it fully recycles waste hot air heat generated during drying, greatly improving thermal utilization rate and reducing energy consumption. The micro negative pressure sealed dust removal system collects fine powder residues, realizes zero material loss and zero dust overflow, and meets international environmental protection emission standards for distilleries.
5. Intelligent DDGS Dedicated PLC Control System
The intelligent touch screen system independently adjusts drum rotating speed, hot air temperature and air volume according to the moisture, viscosity and output requirements of different grain-based distiller grains (corn, sorghum, rice). It realizes automatic constant-moisture drying, with over-temperature anti-coking protection and fault alarm functions, supporting 24-hour unmanned continuous stable production.
Core Product Advantages of Distiller’s Grains Dryer
1. Exclusive Anti-Stick & Anti-Coking Design
Aiming at the high-sugar sticky characteristics of distiller grains, the special anti-stick lining and automatic scraping structure fundamentally solve the industry pain points of wall sticking, material accumulation and high-temperature coking. No frequent shutdown cleaning is required, which greatly improves continuous production efficiency and reduces manual maintenance costs, far superior to ordinary residue dryers.
2. Low-Temp Gradient Drying, Full Nutrition Retention
Staged low-temperature constant-temperature drying avoids protein denaturation and nutritional loss caused by high-temperature baking. The finished DDGS distiller grains retain natural grain fragrance and high crude protein content, without coking spots, blackening or peculiar smell. The feed grade and commercial value are significantly improved, suitable for high-standard feed processing.
3. High Energy Saving & Low Operating Consumption
The circulating waste heat recovery system improves thermal efficiency by more than 38% compared with traditional distiller grain dryers. It supports multiple clean heat sources such as biomass, natural gas, steam and diesel, effectively reducing fuel and power consumption. The equipment has stable operation, low failure rate and few wearing parts, greatly reducing long-term operating costs of distilleries.
4. Loose Finished Product & Stable Moisture
Through pre-breaking dispersion and uniform hot air exchange, the internal and external moisture of distiller grains is completely removed without wet core. The finished DDGS materials are loose and uniform with stable moisture of 10%-15%, no secondary caking or agglomeration. The products have good fluidity, convenient storage and transportation, and long shelf life.
5. High Yield & Zero Waste Utilization
The fully sealed drying structure and fine powder recovery system avoid material loss and dust overflow. The finished product yield is increased by 15%-20%, maximizing the utilization rate of distillery waste residues. It turns waste distiller grains into high-value feed and fertilizer raw materials, realizing green circular economy for distilleries.
6. Strong Versatility & Wide Adaptability
It is compatible with various types of distiller grains, including corn distiller grains, sorghum distiller grains, rice distiller grains and mixed grains distiller residues. The finished products can be used for livestock and poultry feed, aquaculture feed, organic fertilizer processing and biomass fuel production, with flexible and diverse application scenarios.
Working Principle & Production Process of Distiller’s Grains Dryer
Working Principle
The distiller’s grains DDGS dryer adopts anti-stick and anti-coking low-temperature gradient drying principle for high-sugar viscous distillery residues. Fresh wet distiller grains with 60%-65% moisture are sent to the pre-breaking feeding device to crush caked materials and form loose uniform raw materials, avoiding stacking and agglomeration.
Materials stably enter the special anti-stick rotary drum. With the slow rotation of the drum, the anti-stick lining and lifting plates continuously scrape, flip and disperse the materials to prevent wall sticking and local accumulation. The materials pass through the low-temperature pre-dehydration zone, medium-temperature deep drying zone and cooling shaping zone in sequence. The circulating hot air gradually evaporates internal and surface moisture at constant low temperature, avoiding high-temperature coking and nutrient loss. Finally, loose, dry and high-quality DDGS finished products are discharged after cooling and purification.
Standard Production Flow
Wet Distiller Grains Feeding → Pre-Breaking Loose Dispersion → Anti-Stick Drum Uniform Turning → Low-Temp Pre-Dehydration → Constant-Temp Deep Drying → Waste Heat Recovery & Purification → Cooling Shaping → Dry DDGS Finished Product Discharging → Feed Processing / Organic Fertilizer / Biomass Fuel Production

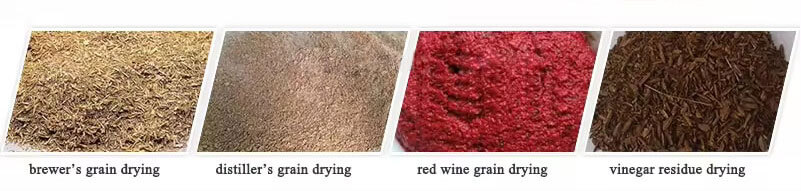

Application Scenarios of Distiller’s Grains Dryer
This professional distiller’s grains dryer is specially developed for high-value recycling of various distillery grain residues. It solves the pain points of easy sticking, coking, deterioration and low utilization rate of fresh distiller grains. The dried high-quality DDGS materials have high protein content, loose texture and no peculiar smell, which are widely used in livestock and poultry breeding feed, aquaculture compound feed, high-grade organic fertilizer processing and biomass energy fuel production. It helps global distilleries solve environmental pressure of waste residues and create additional sustainable economic benefits.
Core Application Fields: Distillery residue recycling, DDGS feed production, livestock & poultry feed processing, organic fertilizer raw material upgrading, biomass fuel manufacturing

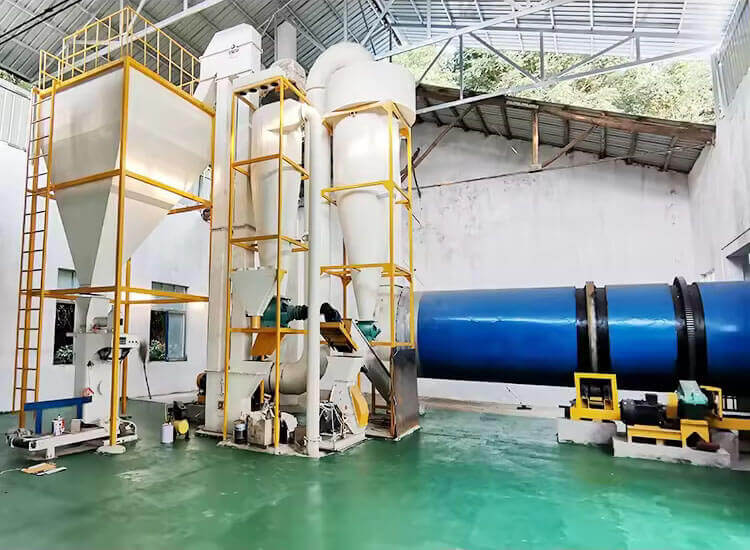

Real Project Cases of Distiller’s Grains Dryer
Case 1: 12T/H Corn Distiller Grains DDGS Project | China Large Distillery Group
Project Info: The customer produces a large amount of corn distiller grains every day. Traditional dryers have serious wall sticking and material coking problems, resulting in low finished product quality. Our anti-stick low-temperature dryer completely solves sticking and coking issues, stably controls finished moisture at 12%, retains high protein activity. The qualified DDGS feed is supplied to domestic and foreign breeding bases in batches, achieving high-profit waste recycling.
Case 2: 8T/H Sorghum Distiller Grains Drying Project | Vietnam Alcohol Factory
Project Info: The customer’s sorghum distiller grains have extremely high viscosity and are prone to agglomeration and deterioration. Customized anti-stick drum structure and gradient drying technology ensure uniform drying without dead zones. The finished DDGS has stable quality and good palatability, and is widely used in local cattle and sheep breeding feed, with high customer recognition.
Case 3: 20T/H Large-Scale Distillery Residue Recycling Project | Thailand Bio-Organic Factory
Project Info: The customer processes mixed grain distiller grains and needs large-capacity continuous drying equipment. Our high-efficiency energy-saving dryer supports 24-hour stable operation, with low operating cost and high finished product yield. The dried materials are used for organic fertilizer and feed dual-purpose production, realizing diversified high-value utilization of distillery waste.
Technical Parameters of Distiller’s Grains Dryer
| Model | Capacity(T/D) | Initial Moisture(%) | Final Moisture(%) | Total Power(KW) | Plant Area(㎡) |
| NJSG1212 | 40 | ≤83 | ≤12 | 24 | 18*5 |
| NJSG1415 | 70 | 32 | 21*5 | ||
| NJSG1615 | 90 | 45 | 21*5 | ||
| NJSG2210/3 | 120 | 69 | 18*6 | ||
| NJSG2212/3 | 140 | 76 | 20*6 | ||
| NJSG2512/3 | 180 | 96 | 20*7 | ||
| NJSG2912/3 | 240 | 125 | 20*8 |
| Model | Input(t/h) | Output(t/h) | Initial Moisture(%) | Final Moisture(%) | Drying Temperature(℃) | Total Power(kw) | Plant Area (m2) |
| NJSG1409 | 1.53 | 0.45 | 60±5 | 15% (Adjustable) | 280±30℃ | 34 | 5m×15m |
| NJSG1615 | 2.89 | 0.85 | 45 | 6m×22m | |||
| NJSG2008/3 | 5.2 | 1.53 | 78 | 8m×16m | |||
| NJSG2010/3 | 6.63 | 1.95 | 90 | 8m×18m | |||
| NJSG2210/3 | 7.24 | 2.13 | 105 | 8m×20m | |||
| NJSG2510/3 | 8.91 | 2.62 | 125 | 10m×20m | |||
| NJSG2512/3 | 10.5 | 3.09 | 140 | 10m*24m | |||
| NJSG2912/3 | 12.14 | 3.57 | 155 | 10m*24m |

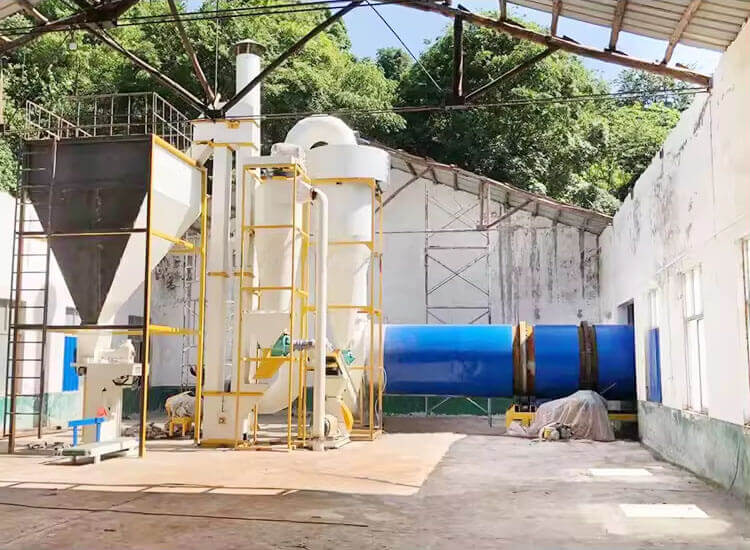

Get Custom Distiller’s Grains Drying Solution
Our professional distiller’s grains DDGS dryer solves the core pain points of traditional distiller residue drying equipment such as wall sticking, high-temperature coking, nutrient loss and low yield. With exclusive anti-stick anti-coking design, low-temperature nutrition retention, ultra-high energy saving and large continuous output advantages, it helps global distilleries and recycling enterprises realize high-value upgrading of distiller grain waste, reduce environmental costs and expand profit channels.
Contact us now to get free equipment quotation, customized model selection and professional DDGS drying project solution!
FAQs of Distiller’s Grains Dryer
Q1: What is the difference between Distiller’s Grains Dryer and Brewer Spent Grain Dryer?
A: Distiller grains belong to high-sugar, high-viscosity distillery residues, which are easy to stick to walls and coke at high temperature. Brewer spent grain is low-sugar high-fiber brewery residue. This DDGS dryer is equipped with exclusive anti-stick and anti-coking structure and low-temperature anti-coking program, which is professionally customized for distiller grain characteristics, with completely different internal structure and drying logic.
Q2: Why do distiller grains need low-temperature drying instead of high-temperature drying?
A: Distiller grains contain a lot of residual sugar. High-temperature rapid drying will cause sugar coking and material blackening, destroy protein nutrients, produce peculiar smell, and seriously reduce feed grade and commercial value. Staged low-temperature drying ensures no coking and maximum nutrition retention.
Q3: How to completely solve distiller grains wall sticking problem?
A: Our equipment adopts customized anti-stick drum lining + automatic scraping and dispersion lifting structure. It continuously peels off sticky materials during operation, fundamentally eliminating wall sticking and material accumulation without manual cleaning, ensuring long-term continuous production.
Q4: What is the standard moisture of commercial DDGS distiller grains?
A: The international commercial standard moisture for feed-grade DDGS distiller grains is 10%-15%. This moisture range ensures no mildew, acid deterioration and coking during long-term storage, and maintains optimal nutritional activity and palatability.
Q5: What types of distiller grains can this dryer process?
A: It has strong versatility, suitable for corn, sorghum, rice, wheat and other grain-based distiller grains and mixed distillery residues, meeting the drying needs of various distillery and ethanol factory waste recycling projects.
