Diesel Hammer Crusher

Portable diesel hammer crusher without electricity needed. High crushing ratio, adjustable discharge size, low fuel consumption. Ideal for remote construction, mining & waste recycling. Free quote!

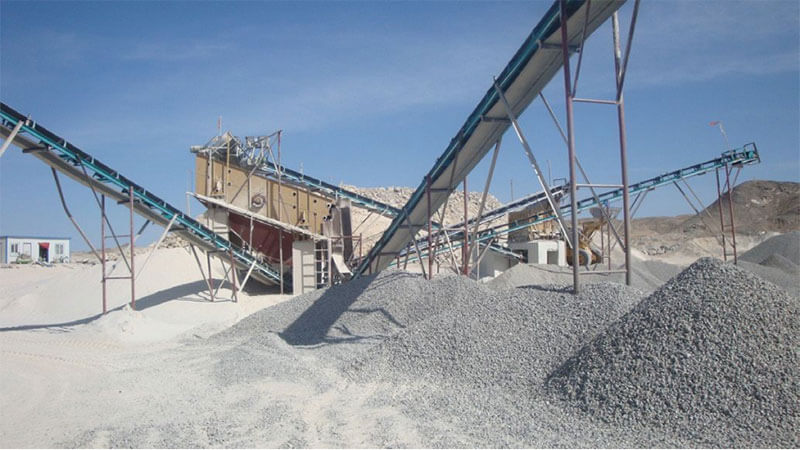

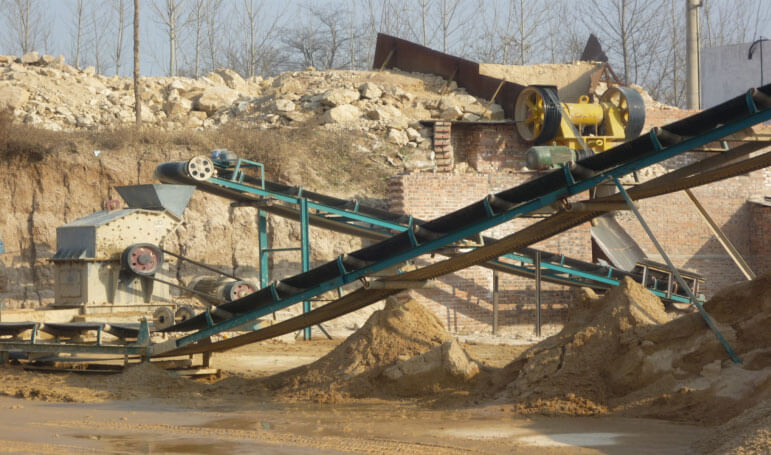

• Remote Road & Infrastructure Construction：On-site crushing of road stone and foundation materials in mountainous and remote areas without electricity
• Small Mining Operation：Medium and fine crushing of limestone, coal, gangue and other brittle ores
• Construction Waste Recycling：Crush waste concrete, bricks and blocks into reusable aggregates
• Rural & Temporary Projects：Mobile crushing for temporary construction, farmland renovation and small yard processing

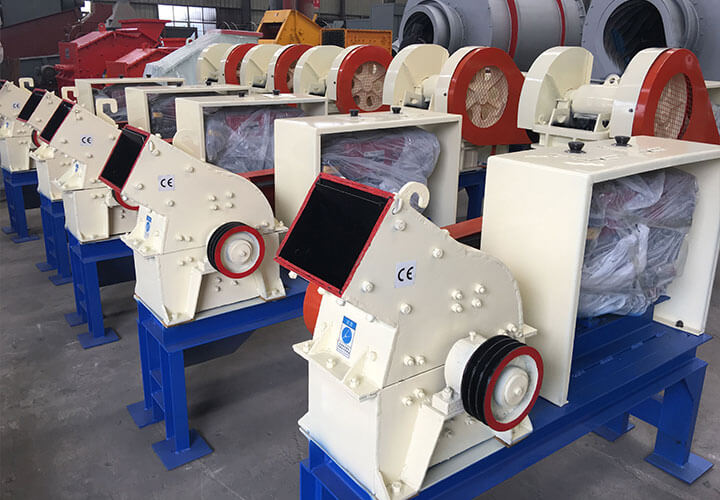

Driven by the motor, the rotor rotates at a high speed inside the crushing chamber. When materials enter the crushing chamber from the top feeding port, they are continuously impacted, crushed and ground by the high-speed rotating hammer heads . Small-sized qualified materials pass through the screen grate and discharge from the bottom; large-sized materials are repeatedly crushed in the chamber until they meet the discharge standard. The whole process is simple, efficient and fully automated, realizing continuous batch crushing operation.

• Integrated Crushing & Shaping：Dual functions of crushing and shaping in one unit, effectively reduce equipment purchase cost and occupied area, improve production efficiency by 30%+
• Superior Wear Resistance：Key wearing parts including hammer head and grate plate are made of high chromium iron and high manganese steel, with strong impact resistance and abrasion resistance, extending equipment service life
• Flexible Particle Size Adjustment：Equipped with adjustable grate gap device, the discharge particle size can be adjusted freely according to customer requirements, meeting various production standards
• High Production Efficiency：Optimized rotor structure and material flow design, large feeding capacity, smooth discharging, no material blocking, stable continuous operation
• Low Operation & Maintenance Cost：Compact and rigid body structure, fewer vulnerable parts, simple disassembly, installation and lubrication, greatly saving daily maintenance time and cost
• Safe & Environmentally Friendly：Closed fuselage design avoids material splashing, reduces dust pollution; optimized transmission structure reduces operation noise, compliant with international environmental protection and safety regulations

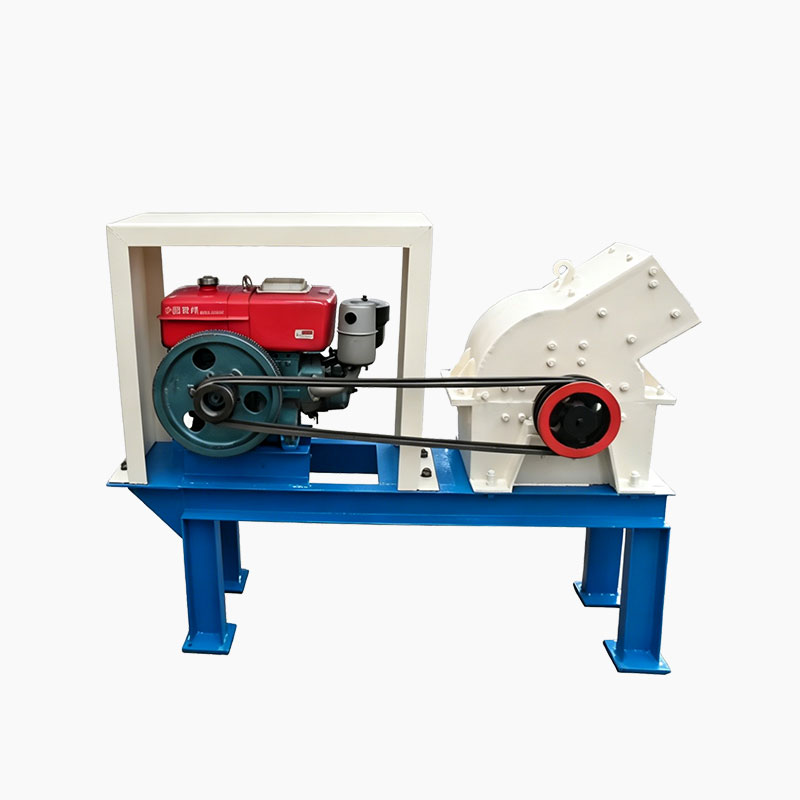

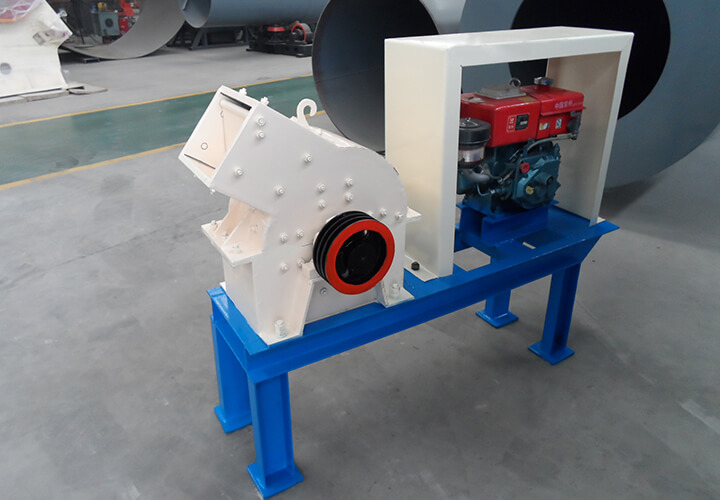

Diesel engine unit, body frame, feed hopper, rotor assembly, hammer head, counterattack liner plate, grate bars, discharge port, belt drive system and protective cover.

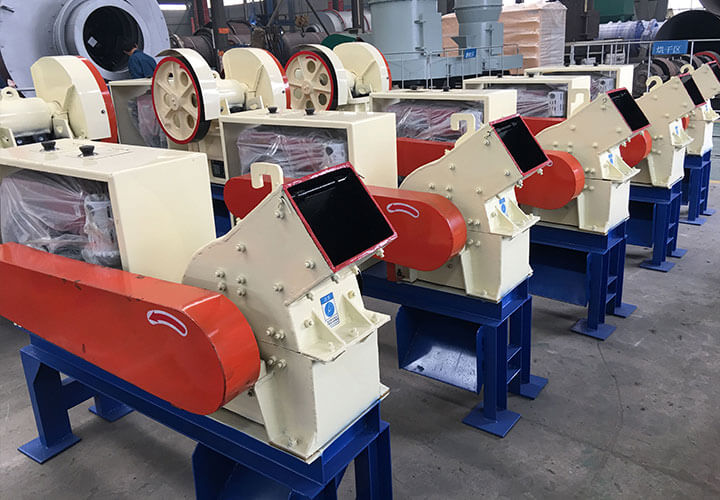

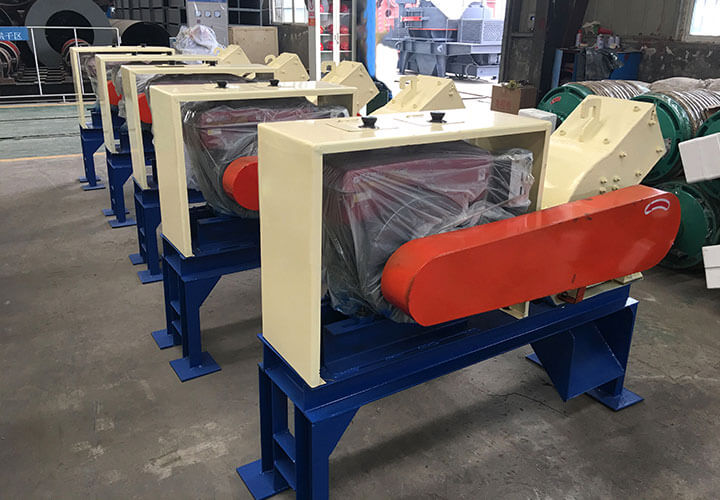

Based on good quality and decades of experience, the Hammer Crusher which is manufactured by NJMINING was exported to different countries. The Hammer Crusher will be packed and loaded in our factory, and then be shipped to our clients safe and sound.
