Kitchen Waste Screw Dehydrator
Automatic Anti-Clog Screw Press Machine for Kitchen Food Waste Solid-Liquid Separation & Volume Reduction
Kitchen Waste Screw Dehydrator is a professional pre-treatment solid-liquid separation equipment specially designed for high-moisture, high-oil and easily tangled kitchen waste. It reduces raw kitchen waste moisture from 85%-90% to 50%-60%, realizes 70%+ volume reduction, solves clogging, winding and odor overflow problems, and provides efficient pretreatment for subsequent drying, composting and resource recycling.
Anti-Clog
Anti-Winding
Anti-Corrosion
What is Kitchen Waste Screw Dehydrator?
Kitchen waste is characterized by ultra-high moisture, mixed grease, vegetable fibers, food residues and easy winding impurities. Untreated kitchen waste occupies large space, produces foul odor, breeds bacteria, and brings high transportation and disposal costs for environmental protection projects. Traditional manual dehydration and simple filtering equipment have low separation efficiency, easy blockage and serious material leakage, which cannot meet industrial continuous treatment needs.
Our Kitchen Waste Screw Dehydrator adopts advanced mechanical screw extrusion principle. Through gradual pressure increase and precise gap control, it efficiently separates free water, grease and organic sludge from kitchen waste. The fully sealed structure prevents odor overflow, and the anti-winding screw design ensures stable continuous operation. As the core pretreatment equipment of kitchen waste recycling system, it greatly reduces subsequent processing pressure and improves overall project benefit.
Contents

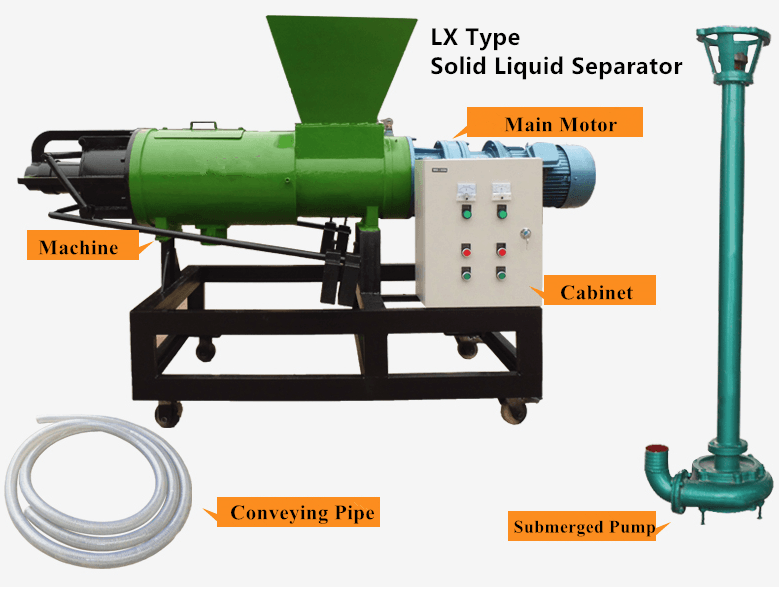

Complete Equipment Composition of Kitchen Waste Screw Dehydrator
1. Anti-Winding Variable-Pitch Screw Shaft (Core)
The core screw shaft adopts optimized variable-diameter and variable-pitch structure. The pitch gradually decreases from feeding end to discharging end, forming gradual extrusion pressure, which fully squeezes internal moisture and grease of kitchen waste. The special non-winding blade design effectively avoids fiber and vegetable residue entanglement, completely solving the common blockage failure of traditional screw presses. The surface is treated with wear-resistant and anti-corrosion process, with long service life and stable extrusion performance.
2. High-Precision Stainless Steel Filter Screen Barrel
The filter barrel is made of thick 304 stainless steel, with uniform and dense filter holes. It can effectively intercept solid organic materials while smoothly discharging sewage and waste oil, ensuring high separation precision. The integrated screen structure is not easy to deform or damage under long-term high-pressure extrusion, and is resistant to oil corrosion and material abrasion, adapting to long-term high-load industrial operation.
3. Fully Sealed Anti-Odor Housing System
The whole machine adopts fully closed structural design with micro-negative pressure operation, which effectively locks peculiar smell and prevents odor overflow during dehydration process. It avoids secondary air pollution in the workshop, meeting urban environmental protection production standards. The detachable sealed cover is convenient for daily cleaning and maintenance without dead corners.
4. Automatic Feeding & Discharging Adjustment Device
Equipped with quantitative feeding and adjustable discharging baffle mechanism. The extrusion pressure can be automatically adjusted according to different waste moisture and material properties, ensuring stable and uniform dehydration effect. It supports continuous feeding and uninterrupted discharging, realizing fully automated assembly line operation without manual intervention.
5. Low-Noise Energy-Saving Drive & PLC Control System
Adopts high-torque low-speed drive motor, with strong extrusion force, low noise and low power consumption. Matching intelligent PLC control panel, it supports one-key start-stop, automatic fault alarm and overload protection. The system can intelligently adjust operating parameters according to material volume, ensuring safe, stable and energy-saving operation of the equipment.

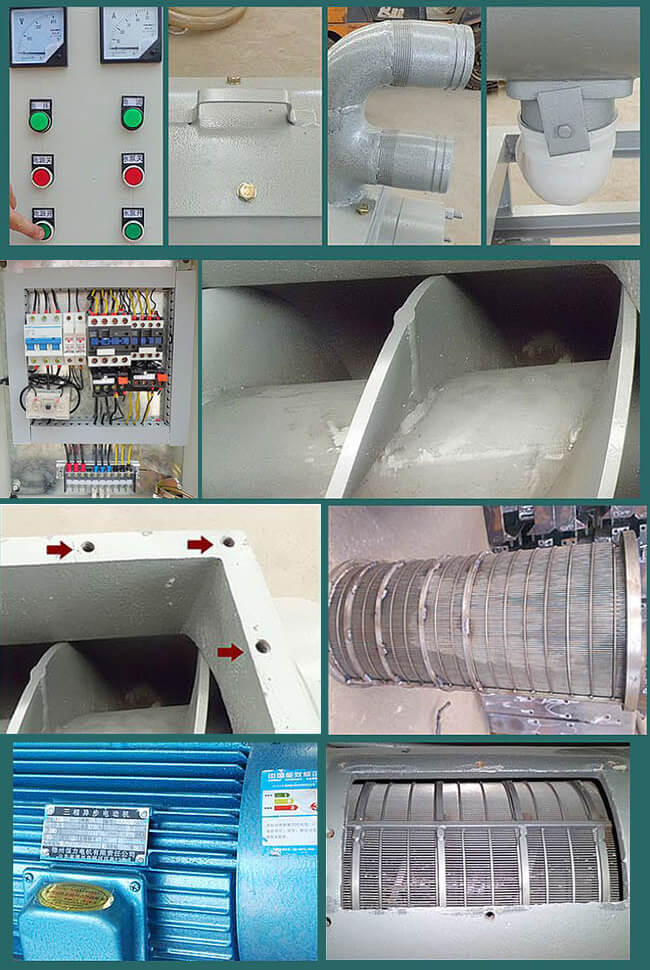

Core Product Advantages of Kitchen Waste Screw Dehydrator
1. High Dehydration & Volume Reduction Rate
Aiming at kitchen waste physical characteristics, the gradual pressurization extrusion technology realizes efficient solid-liquid separation. It can reduce 85%-90% high moisture kitchen waste to 50%-60% stable dry state, with volume reduction rate over 70%. It greatly reduces material stacking space, transportation volume and subsequent processing cost, significantly improving project economic benefits.
2. Anti-Clog & Anti-Winding Continuous Operation
The exclusive variable-pitch screw and anti-winding blade design fundamentally solves the industry pain points of vegetable fiber entanglement, material blockage and equipment shutdown. No frequent manual cleaning is required, and the continuous operation efficiency is increased by more than 40% compared with traditional screw dehydrators, suitable for 24-hour industrial batch processing.
3. Fully Sealed Odor-Free & Eco-Friendly
The fully enclosed negative pressure structure completely isolates odor diffusion during kitchen waste treatment. Sewage and waste oil are collected centrally without leakage, avoiding ground pollution and secondary odor. The whole processing process is clean and environmentally friendly, fully compliant with global urban solid waste treatment environmental protection standards.
4. 304 Stainless Steel Anti-Corrosion & Durable
All material contact parts are made of high-quality 304 stainless steel, which is resistant to oil corrosion, acid and alkali erosion and material abrasion. Compared with ordinary carbon steel equipment, it has longer service life, not easy to rust and deform, and lower later maintenance and replacement costs.
5. Intelligent Automatic & Easy Operation
Intelligent PLC automatic control realizes unmanned continuous operation. The extrusion pressure and discharging speed can be adjusted freely according to different materials and dehydration requirements. The equipment features simple structure, few wearing parts and convenient daily cleaning and maintenance, reducing labor operation cost.
6. Wide Material Adaptability
This screw dehydrator is not only suitable for all kinds of kitchen and catering waste, but also compatible with fruit and vegetable residues, food processing dregs, wet organic garbage and other high-moisture organic materials. It has strong versatility and can match multiple waste pretreatment scenarios.
Working Principle & Production Process of Kitchen Waste Screw Dehydrator

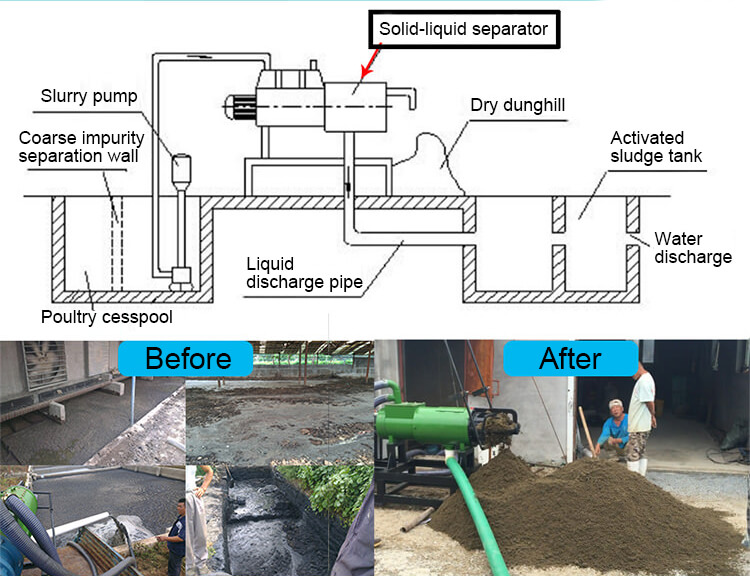

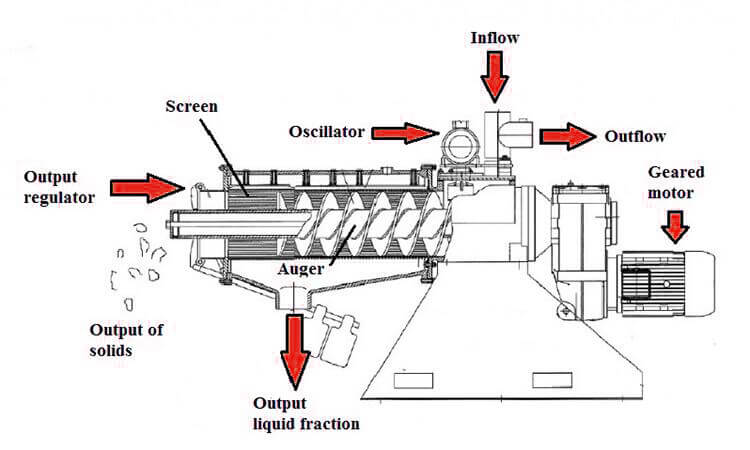

Working Principle
The Kitchen Waste Screw Dehydrator adopts physical screw extrusion solid-liquid separation principle. After crushed and homogenized kitchen waste enters the extrusion bin, the variable-pitch screw shaft pushes materials forward continuously. With the gradual reduction of screw pitch and extrusion gap, the internal pressure increases steadily, squeezing free water, waste oil and organic sewage out of materials.
Liquid impurities flow out through the precision filter screen and are collected centrally, while solid materials are retained and continuously extruded and dehydrated. Finally, dry low-moisture kitchen waste is discharged from the adjustable discharging port. The whole process realizes automatic feeding, continuous extrusion, efficient separation and stable discharging, completing high-standard pretreatment of kitchen waste in one step.
Standard Working Flow
Raw Kitchen Waste Feeding → Homogenization & Pre-Crushing → Screw Continuous Extrusion → Solid-Liquid Separation → Sewage & Grease Collection → Dry Material Discharging → Subsequent Drying / Composting / Resource Recycling
Application Scenarios of Kitchen Waste Screw Dehydrator
This Kitchen Waste Screw Dehydrator is widely used in urban kitchen waste treatment stations, catering garbage centralized disposal projects, food factory residue pretreatment, environmental protection solid waste recycling projects and other scenarios. It serves as the core front-end pretreatment equipment, effectively solving the problems of high moisture, large volume, difficult transportation and easy odor of kitchen waste. The dehydrated solid materials can be used for organic fertilizer composting, biomass drying and resource reuse, while the separated sewage can be treated by sewage system, helping enterprises realize standardized and harmless kitchen waste disposal.
Core Application Fields: Urban kitchen waste disposal projects, catering industry garbage pretreatment, food processing residue dewatering, environmental protection solid waste volume reduction, organic fertilizer raw material pretreatment

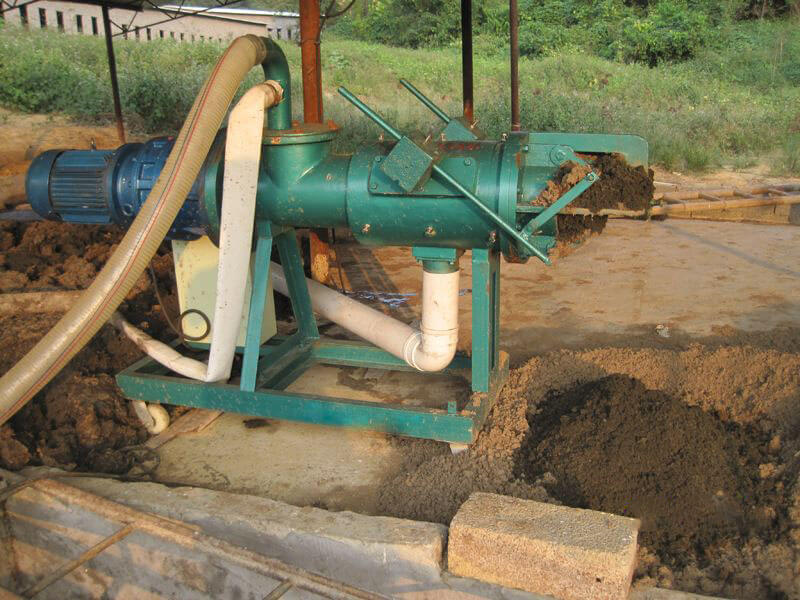

Real Project Cases of Kitchen Waste Screw Dehydrator
Case 1: 1T/H Kitchen Waste Pretreatment Project | Singapore Environmental Protection Station
Project Info: The customer undertakes urban community kitchen waste centralized treatment, facing problems of large waste volume and difficult transportation. Our screw dehydrator realizes rapid dehydration and 70%+ volume reduction, effectively reducing transportation pressure. The fully sealed design eliminates workshop odor, meeting Singapore’s strict environmental emission standards.
Case 2: 1.5T/H Food Residue Dehydration Project | Malaysia Food Processing Plant
Project Info: The factory produces a large amount of wet food residues every day. Traditional equipment is easy to block and wind fibers. Our anti-clog screw dehydrator runs stably for a long time with high separation efficiency. The dehydrated materials are used for subsequent drying and feed recycling, creating additional economic benefits.
Case 3: 2T/H Large Kitchen Waste Pretreatment Line | Australia Urban Environmental Project
Project Info: The customer needs continuous and efficient kitchen waste pretreatment equipment. Our fully automatic screw dehydrator supports 24-hour uninterrupted operation, with stable dehydration effect and low failure rate. It perfectly matches the subsequent composting process, helping the project realize full-process harmless treatment and resource recycling.
Technical Parameters of Kitchen Waste Screw Dehydrator
| Model | NJLXT250 | NJLXT300 | NJLXT350 | NJLXT400 | NJLXT450 | NJLXT500 |
| Power (kw) | 7.5 | 11 | 15 | 18.5 | 22 | 30 |
| Speed range range (r/min) | Â 125 – 1250 | |||||
| Weight (t) | 0.75 | 1.1 | 1.5 | 2.0 | 3.5 | 5.0 |
| Processing capacity (t/d) | Â 40 | Â 70 | Â 90 | Â 120 | Â 160 | Â 200 |
| Floor area (㎡) | 2.1 | 2.1 | 2.1 | 5.04 | 5.04 | 5.04 |
Get Custom Kitchen Waste Drying Solution
Our Kitchen Waste Screw Dehydrator breaks through the defects of traditional dehydration equipment such as easy blockage, low efficiency and odor leakage. With anti-winding anti-clog design, high-efficiency solid-liquid separation, large volume reduction rate and fully sealed environmental protection advantages, it provides professional low-energy pretreatment solutions for global kitchen waste and organic solid waste treatment projects, helping customers reduce processing costs and improve resource recycling efficiency.
Contact us now to get free model selection, technical parameter matching and accurate quotation!
FAQs of Kitchen Waste Screw Dehydrator
Q1: What is the difference between screw dehydrator and drying machine?
A: Screw dehydrator is front-end physical extrusion pretreatment equipment, which removes most free water and realizes rapid volume reduction with low energy consumption. Dryers are used for deep drying of materials after dehydration. The two equipment are used together to greatly improve overall processing efficiency and save operating costs.
Q2: Can this equipment solve fiber winding and blockage problems?
A: Yes. Adopting exclusive anti-winding variable-pitch screw structure, it can effectively avoid entanglement of vegetable fibers, food residues and sundries. No material accumulation and blockage occur during continuous operation, reducing manual cleaning frequency.
Q3: What is the final moisture of dehydrated kitchen waste?
A: After treatment by our screw dehydrator, the kitchen waste moisture is stably controlled at 50%-60%, which is the best pretreatment moisture for subsequent composting, drying and resource recycling, realizing maximum volume reduction effect.
Q4: Will the equipment cause odor leakage during operation?
A: No. The whole machine adopts fully sealed negative pressure structure, which completely locks internal odor. There is no odor overflow or secondary pollution during operation, fully meeting international environmental protection requirements.
Q5: Is the equipment easy to maintain?
A: The equipment has simple structure, few wearing parts and 304 stainless steel overall anti-corrosion design. It is convenient for daily disassembly, cleaning and maintenance, with low later maintenance cost and long service life.
