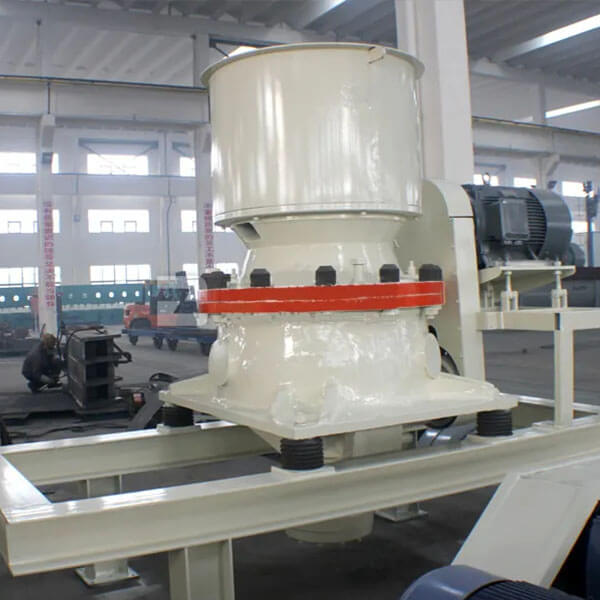

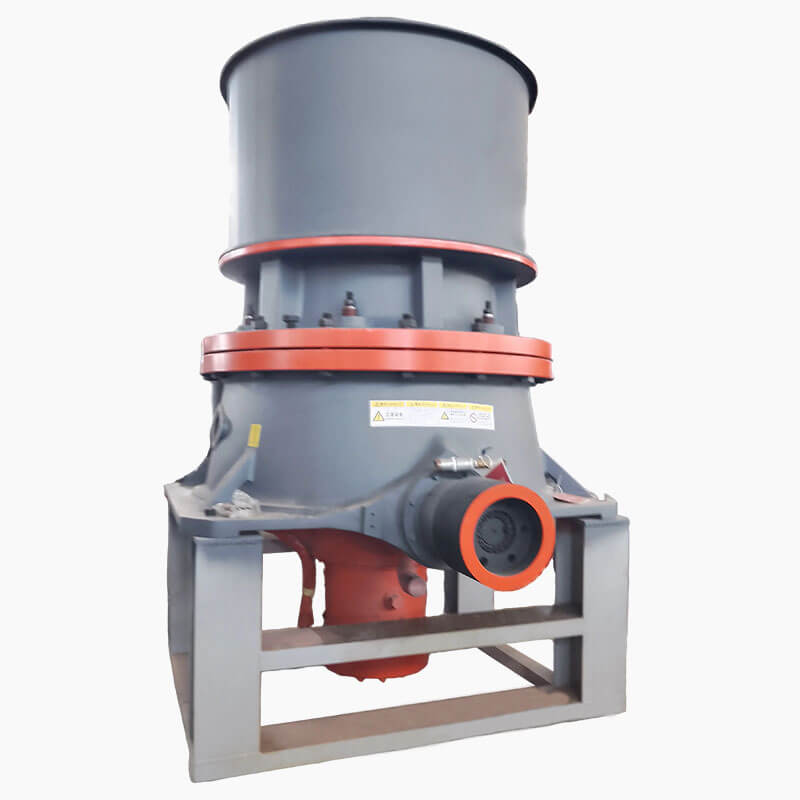

Single Cylinder Hydraulic Cone Crusher

• Medium and small-scale mining secondary and tertiary fine crushing of metal ores

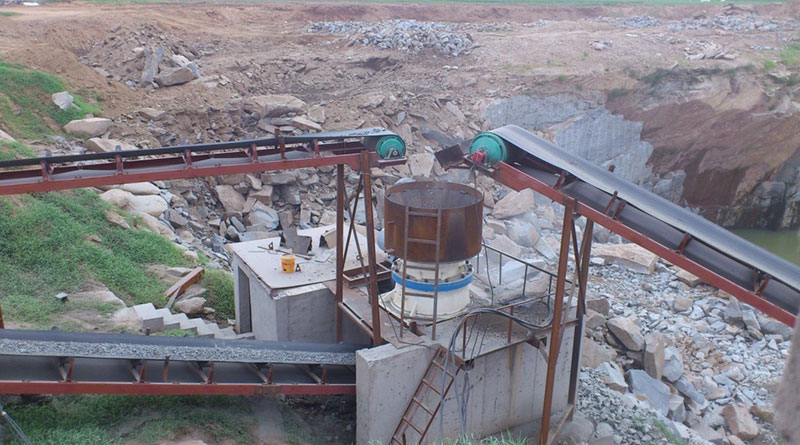

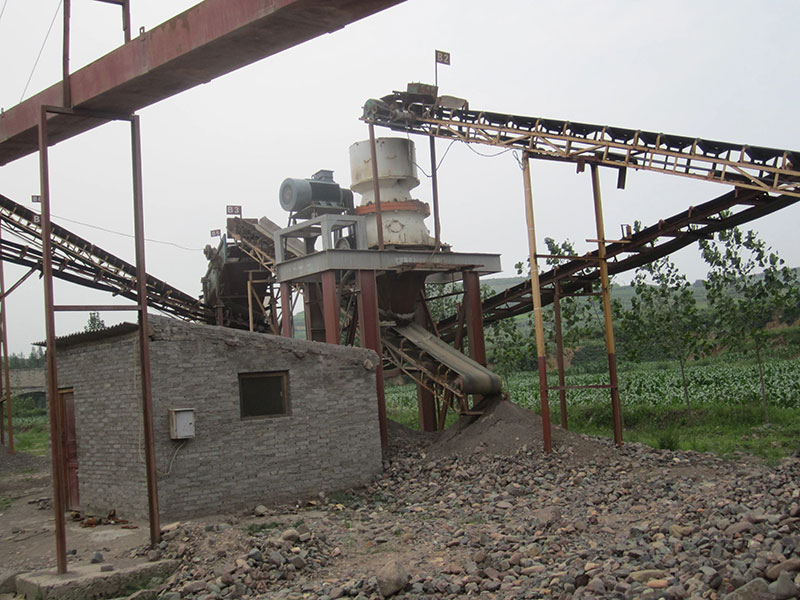

• Quarry hard rock crushing of granite, basalt, river stone and diabase
• Standard aggregate production for municipal and highway construction projects

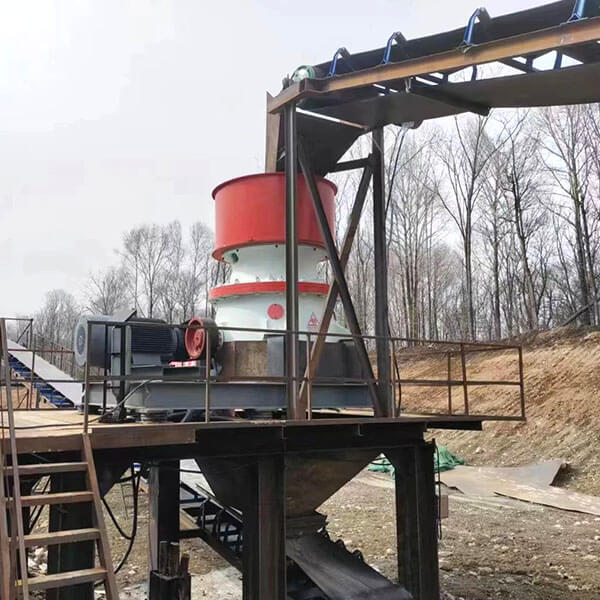

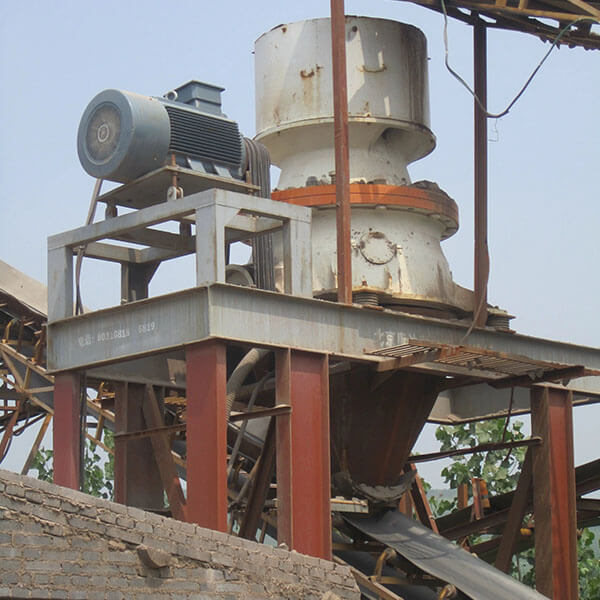

• Fixed crushing station medium and fine crushing core equipment
• Construction waste concrete and hard material recycling processing
• Matching equipment for mobile integrated crushing lines

• Integrated Single Cylinder Hydraulic Design: The single cylinder hydraulic cone crusher integrates discharge adjustment, automatic cavity clearing and overload protection into one hydraulic cylinder. The overall structure is simpler with fewer accessories, effectively reducing daily failure rate and troubleshooting difficulty.
• Multi-cavity Flexible Switching: Equipped with replaceable crushing cavities, the HST single cylinder cone crusher can freely switch between coarse, medium and fine crushing modes without replacing main components, adapting to diverse particle size production requirements.
• Excellent Lamination Crushing Effect: Adopts layered squeezing crushing principle, making materials crush themselves under pressure. The finished aggregates present uniform cubic shape, low flakiness rate and reasonable gradation, meeting standard construction and road aggregate requirements.
• Intelligent Automatic Operation: Matched with intelligent PLC control system, the single cylinder hydraulic cone crusher realizes real-time load monitoring, automatic overload protection and one-key particle size adjustment, reducing manual operation dependence.
• Ultra-low Comprehensive Operating Cost: Simple structure means fewer vulnerable parts and lower replacement cost. The integrated hydraulic system reduces energy consumption and maintenance labor cost, delivering higher cost performance than multi-cylinder models.
• Compact & Space-saving Structure: Streamlined body design occupies less floor space, convenient for site layout and equipment transportation, suitable for fixed stations and mobile crushing line matching.
• Stable Overload Protection: The single hydraulic cylinder provides sensitive and reliable pressure release protection. When uncrushable foreign matter enters the cavity, the system releases pressure instantly to protect the main machine from damage.

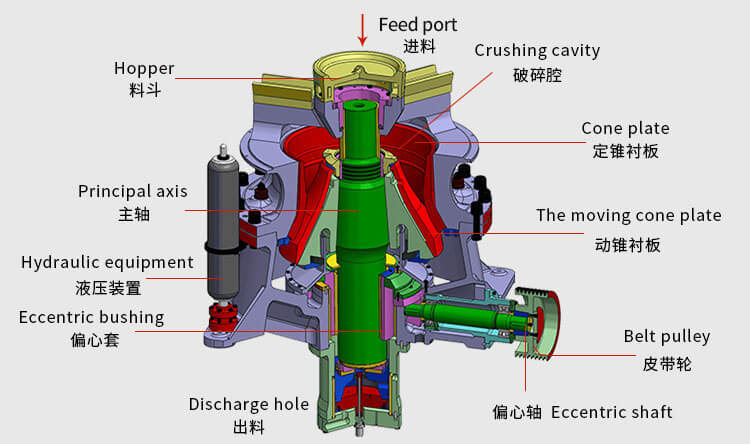

• Integrated Upper & Lower Frame: Heavy-duty cast steel frame with overall heat treatment, high rigidity and strong vibration resistance, avoiding structural deformation during long-term heavy-load operation of the single cylinder hydraulic cone crusher.
• High-precision Eccentric Transmission Mechanism: Bevel gear drives the eccentric sleeve to rotate stably, providing stable swing stroke for the movable cone, ensuring uniform and consistent material crushing effect.
• High Wear-resistant Crushing Liner: Mantle and concave are made of high manganese steel wear-resistant alloy, with strong compression and impact resistance, adapting to long-term crushing of various hard ores and stones.
• Single Integrated Hydraulic Cylinder: The core exclusive component of the single cylinder cone crusher, undertaking adjustment, cavity clearing and overload protection functions, realizing multi-purpose integration and simplifying the whole machine structure.
• Full-circulation Lubrication System: Independent circulating grease lubrication device ensures sufficient and stable lubrication of bearings and transmission parts, with closed dust-proof design to extend service life of core components.

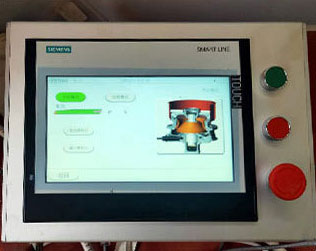

• Intelligent PLC Control Cabinet: Real-time monitoring of equipment current, pressure and temperature data, with automatic alarm and protection functions, realizing safe and intelligent unmanned operation.

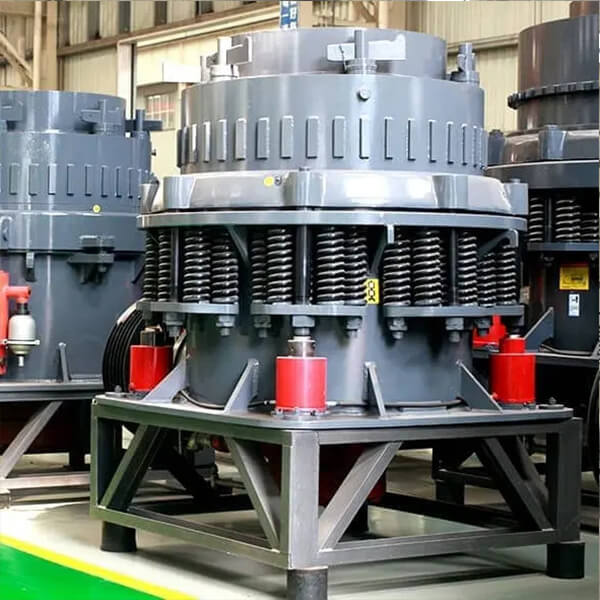

• CS Compound Symons Cone Crusher: Spring-hydraulic compound structure, stable operation, many accessories, tedious maintenance, suitable for conventional medium-cost projects.
• HP Multi-Cylinder Hydraulic Cone Crusher: Multi-cylinder high-pressure structure, high output and good particle shape, high configuration and high price, oriented to large-scale high-standard projects.
• Single Cylinder Hydraulic Cone Crusher: Simplified integrated single-cylinder design, fewer failure points, lower maintenance cost, flexible cavity switching, high cost performance, the best choice for medium and small-scale standard crushing projects.

FAQ About Single Cylinder Hydraulic Cone Crusher

• Q1: What is a single cylinder hydraulic cone crusher used for? A1: The single cylinder hydraulic cone crusher is professional secondary and tertiary crushing equipment. It is mainly used for medium and hard materials such as granite, basalt, river stone and metal ores, widely applied in quarry aggregate production, mining fine crushing and construction waste recycling projects.
• Q2: What is the difference between single cylinder and multi-cylinder cone crusher? A2: The single cylinder hydraulic cone crusher adopts one integrated hydraulic cylinder with simpler structure, fewer vulnerable parts and lower maintenance cost. The multi-cylinder model has stronger crushing pressure and higher output. The single cylinder model is more cost-effective for conventional standard projects, while multi-cylinder is for high-output high-standard projects.
• Q3: Can the single cylinder cone crusher adjust discharge particle size freely? A3: Yes. The integrated hydraulic cylinder supports automatic and accurate adjustment of the discharge gap. Users can easily switch between coarse, medium and fine crushing modes by replacing different crushing cavities to meet various particle size requirements.
• Q4: How about the finished particle quality of single cylinder cone crusher? A4: Excellent. Adopting advanced lamination crushing principle, the single cylinder hydraulic cone crusher realizes layered material squeezing, with low flakiness content and uniform cubic particle shape, fully meeting general highway and construction aggregate standards.
• Q5: Is the single cylinder cone crusher easy to maintain? A5: Very easy. Compared with multi-cylinder and compound cone crushers, the single cylinder hydraulic cone crusher has fewer hydraulic components and simpler structure. Vulnerable parts are standardized and easy to replace, greatly saving daily maintenance time and labor cost.
• Q6: Does the single cylinder cone crusher have overload protection function? A6: Yes. The integrated single hydraulic cylinder has sensitive overload pressure release function. When uncrushable foreign matter enters the crushing cavity, the hydraulic system releases pressure instantly to discharge foreign matters and protect the main machine from damage.
• Q7: What kind of projects is the HST single cylinder model suitable for? A7: It is very suitable for medium and small-scale crushing lines, conventional standard aggregate plants, and mining projects with limited budget and low maintenance requirements. It balances performance and cost with ultra-high cost performance.
