Kaolin Rotary Kiln
Staged Temperature Calcination Rotary Kiln for High-Whiteness Calcined Kaolin & Metakaolin Production
Kaolin Rotary Kiln is a professional low-damage thermal processing equipment specially customized for kaolin clay mineral calcination. Different from high-temperature sintering kilns for cement and bauxite, it adopts multi-stage precise temperature control (drying, dehydroxylation, crystal transformation, whitening) to remove free water and hydroxyl groups of raw kaolin without high-temperature yellowing. It stably produces high-whiteness calcined kaolin and metakaolin, widely used in papermaking, coating, ceramics, building materials and chemical industries.
High Activity
Continuous
Stable Quality
What is Kaolin Rotary Kiln?
Raw kaolin clay contains free water, crystal water and hydroxyl components, with low whiteness, high plasticity and unstable chemical properties, which cannot be directly used for high-end industrial production. Traditional universal rotary kilns adopt single high-temperature heating, which is prone to incomplete dehydroxylation at low temperature or crystal over-burning and yellowing at high temperature, resulting in low finished product whiteness, unstable activity and poor market competitiveness. In addition, traditional equipment has disordered temperature field distribution, serious heat loss and low resource utilization rate, which restricts the quality and economic benefit of kaolin deep processing.
Our High-Precision Kaolin Rotary Kiln solves the industry pain points through targeted thermal process optimization. It adopts exclusive staged temperature adjustment technology, accurately matching the physical and chemical reaction characteristics of kaolin clay. It completes low-temperature drying, medium-temperature dehydroxylation and high-temperature whitening and crystal stabilization in sequence, effectively improving kaolin whiteness and chemical inertness. Equipped with efficient waste heat recovery and uniform heat exchange system, it realizes low-energy and high-quality calcination, ensuring stable batch quality of high-end paper, coating and ceramic-grade kaolin products.
Core Structural Composition & Functional Advantages of Kaolin Rotary Kiln
1. Low-Temperature Uniform Heating Kiln Structure
The kiln body adopts optimized low-temperature uniform heating design, with thickened high-quality steel plate welding structure and strong structural stability. Different from high-temperature sintering kilns, it reduces local high-temperature hot spots, effectively avoiding kaolin crystal damage and yellowing discoloration. The optimized cylinder rotating speed and inclination ensure consistent heating time of each material particle, laying a foundation for high whiteness finished products.

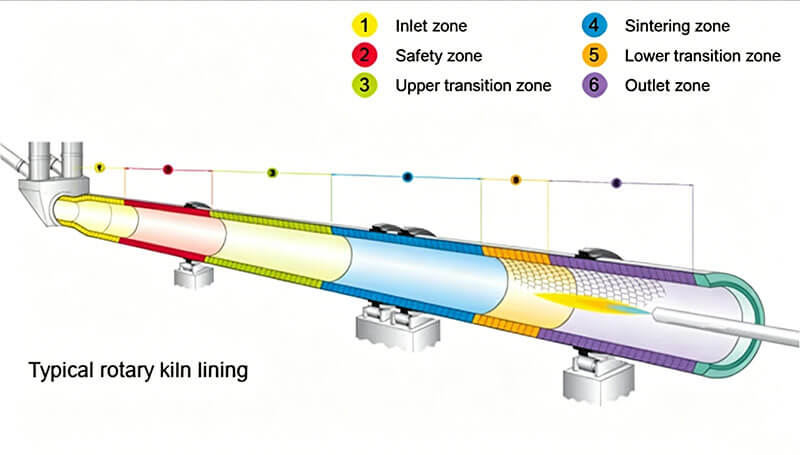

2. Zoned Customized Refractory & Heat Insulation Lining
The inner wall is paved with lightweight heat-insulating refractory bricks specially for kaolin calcination. It has low heat storage and fast heat conduction, which can form a stable uniform temperature field in each functional zone. It effectively reduces heat loss, improves thermal efficiency, and avoids quality fluctuation caused by uneven temperature, ensuring stable whiteness of each batch of kaolin products.
3. Intelligent Multi-Stage PLC Temperature Control System
Exclusive four-zone independent temperature adjustment module, realizing precise temperature locking for drying, dehydroxylation, crystal transformation and whitening zones. The temperature error is controlled within ±5℃, perfectly matching the delicate reaction curve of kaolin. It thoroughly solves the common problems of incomplete dehydroxylation, low whiteness and over-burning yellowing of traditional kaolin calcination equipment.
4. Energy-Saving Adjustable Combustion System
Supports natural gas, diesel, coal powder and multiple fuel combustion methods. The adjustable micro-flame burner realizes uniform and gentle heat radiation, avoiding intense local high-temperature impact. The fully combustion-optimized design improves fuel utilization rate, reduces invalid heat loss, and realizes low-energy and high-quality calcination production.
5. Efficient Waste Heat Recovery & Circulating System
Equipped with professional flue gas waste heat recovery device, the waste heat generated by calcination is recycled for raw material preheating and drying. The comprehensive energy-saving rate is over 28%, greatly reducing long-term fuel and power consumption costs. The closed heat circulation system avoids heat waste and improves overall production efficiency.
6. High-Tightness Sealing & Dust-Free Environmental Protection Design
Kiln head and kiln tail adopt multi-layer flexible sealing structure to block cold air infiltration and flue gas leakage. Matched with high-efficiency pulse dust removal equipment, it realizes zero dust overflow during production. It not only avoids fine kaolin powder loss, but also meets international environmental protection emission standards.
7. Stable Low-Speed Transmission & Support System
Adopts low-speed stable frequency conversion transmission system, with stepless adjustable rotating speed to adapt to different kaolin raw material fineness and output requirements. Multi-group reinforced supporting rollers and hydraulic deviation correction devices ensure long-term stable operation of the kiln body without jitter or displacement, with low failure rate and easy daily maintenance.
Core Product Advantages of Kaolin Rotary Kiln
1. High Finished Whiteness & Stable Product Quality
The segmented precise temperature control technology perfectly fits the delicate calcination characteristics of kaolin. It completely removes internal moisture and hydroxyl groups without over-burning yellowing. The finished calcined kaolin has high whiteness, uniform particle size and stable chemical inertness, fully meeting the strict quality standards of high-end papermaking, coating and ceramic industries.
2. Complete Dehydroxylation & Optimized Crystal Phase
The independent medium-temperature dehydroxylation zone ensures thorough removal of crystal water and hydroxyl components of raw kaolin. The high-temperature crystal stabilization zone optimizes mineral phase structure to form stable metakaolin and mullite components, effectively improving the wear resistance, weather resistance and filling performance of kaolin products.
3. Low Energy Consumption & High Production Efficiency
The waste heat closed-loop recycling system and uniform heat exchange design greatly reduce heat loss. Compared with traditional kaolin calcination equipment, the comprehensive energy-saving rate is increased by more than 28%. The continuous rotary production mode realizes uninterrupted feeding, calcination and discharging, with high single-machine output and stable production rhythm.
4. Low Damage Calcination & No Material Yellowing
Abandon the single high-temperature sintering mode of ordinary rotary kilns, adopt gentle zoned heating, eliminate local high-temperature hot spots, effectively avoid kaolin crystal damage and yellowing discoloration. The low-damage calcination process maximizes the physical and chemical properties of kaolin, improving product grade and market value.
5. Wide Product Adaptability & Flexible Parameter Adjustment
The temperature and rotating speed can be adjusted flexibly, supporting the production of multiple specifications of kaolin products: low-temperature metakaolin for building materials, medium-temperature filler-grade kaolin for coatings, and high-temperature high-whiteness kaolin for ceramics and papermaking. One machine meets diverse high-end production needs.
6. Durable Structure & Low Operating Cost
The whole machine adopts anti-high temperature, anti-corrosion and wear-resistant structural configuration. The lightweight heat-insulating lining has long service life and low replacement frequency. The equipment has low failure rate, simple daily maintenance and low manual intervention cost, realizing long-term low-cost and stable operation of kaolin production lines.
Working Principle & Complete Calcination Process of Kaolin Rotary Kiln
Core Working Principle
The Kaolin Rotary Kiln adopts multi-stage segmented countercurrent low-damage calcination principle. The slightly inclined rotary cylinder drives kaolin raw materials to move slowly and uniformly from the kiln tail to the kiln head. The high-temperature flue gas generated by the head burner flows reversely with materials to form a layered and stable temperature field inside the kiln, avoiding local overheating and material yellowing.
Materials pass through four core functional zones in sequence to complete full calcination: 120-200℃ drying zone to remove free water; 400-600℃ dehydroxylation zone to remove crystal water and hydroxyl groups to form metakaolin; 900-1100℃ crystal transformation zone to optimize mineral phase structure; 1100-1350℃ whitening & stabilization zone to improve finished product whiteness and stability. After staged reaction, raw kaolin is converted into high-purity, high-whiteness calcined kaolin, which is discharged and cooled to complete automatic continuous production.
Standard Kaolin Calcination Production Flow
Raw Kaolin Crushing & Grinding → Powder Homogenization → Preheating Drying → Kaolin Rotary Kiln Staged Calcination → Constant-Temperature Cooling → Finished Product Grading → Packaging & Storage
Application Scenarios of Kaolin Rotary Kiln
Main Application Fields
Kaolin Rotary Kiln is specially used for deep calcination processing of kaolin clay, covering high-end industrial production fields. It produces high-whiteness calcined kaolin and metakaolin, which are widely used as papermaking coating fillers, paint and coating functional additives, ceramic raw materials, cement admixtures and chemical inorganic fillers. It is suitable for medium and large-scale high-purity kaolin deep processing and mineral upgrading projects worldwide.
Classic Matching Production Line
Raw Kaolin Crushing & Fine Grinding → Powder Batching & Homogenization → Preheating Drying → Kaolin Rotary Kiln Staged Calcination → Intelligent Cooling → Product Grading & Screening → Finished Packaging & Storage
FAQs of Kaolin Rotary Kiln
Q1: What is a kaolin rotary kiln used for?
A: Kaolin rotary kiln is professional thermal processing equipment for kaolin clay. It completes staged drying, dehydroxylation and high-temperature whitening calcination to produce high-whiteness calcined kaolin and metakaolin, widely used in papermaking, coating, ceramic and building material industries.
Q2: What is the calcination temperature range of kaolin rotary kiln?
A: It adopts zoned segmented temperature control: 120-200℃ for drying, 400-600℃ for dehydroxylation, 900-1100℃ for crystal transformation, and 1100-1350℃ for high-whiteness stabilization, adapting to the full-process reaction characteristics of kaolin.
Q3: What is the difference between kaolin rotary kiln and other rotary kilns?
A: Different from cement, bauxite and dolomite kilns focused on high-temperature sintering, kaolin rotary kiln focuses on low-damage staged calcination, with precise low-temperature dehydroxylation and high-temperature whitening functions, effectively avoiding material yellowing and ensuring high product whiteness.
Q4: What finished products can kaolin calcination produce?
A: It can produce high-activity metakaolin (building material admixture) and high-whiteness calcined kaolin (paper/coating/ceramic grade), with stable chemical properties and wide high-end industrial application value.
Q5: Is kaolin rotary kiln energy-saving?
A: Yes. Equipped with complete waste heat recovery and closed-loop circulation system, the comprehensive energy-saving rate exceeds 28%. The uniform heating design avoids heat waste, with significant long-term cost-saving benefits.
Kaolin Rotary Kiln Of Real Project Cases
Case 1: High-Whiteness Paper-Grade Kaolin Project | Malaysia Mineral Processing Plant
Project Info: The customer needed high-whiteness low-yellowing kaolin for high-grade papermaking coating. Our Φ2.8×60m kaolin rotary kiln with four-zone precise temperature control was adopted. The staged low-damage calcination completely removes hydroxyl groups while retaining excellent whiteness of kaolin. The finished product has uniform particle size and stable quality, fully meeting international paper-grade kaolin standards. The waste heat recovery system reduces overall energy consumption by 29%.
Case 2: Coating-Grade Metakaolin Production Project | Thailand Chemical Plant
Project Info: Traditional calcination equipment leads to unstable metakaolin activity and low product added value. After adopting our professional kaolin rotary kiln, the precise 400-600℃ dehydroxylation process ensures sufficient mineral phase transformation. The produced metakaolin has high activity and excellent filling and weather resistance, which is widely used in high-end architectural coatings, greatly improving the product market competitiveness.
Case 3: Ceramic-Grade High-Purity Kaolin Project | Indonesia Building Material Factory
Project Info: Ceramic industry requires ultra-high whiteness and stable kaolin performance. Our kaolin rotary kiln adopts high-temperature whitening and crystal stabilization process, with strict temperature error control. The calcined kaolin has pure color, stable texture and excellent sintering performance, which can produce high-grade ceramic products. The equipment operates stably for a long time with low failure rate, meeting large-scale continuous production demand.
Technical Parameters of Kaolin Rotary Kiln
|
Item
|
Specification
|
|
Machine Model
|
Φ2.0×45 / Φ2.5×50 / Φ2.8×60 / Φ3.0×65m Customizable
|
|
Processing Capacity
|
120 – 1000 TPD Calcined Kaolin
|
|
Zoned Calcination Temperature
|
Drying: 120-200℃; Dehydroxylation: 400-600℃; Crystal Transformation: 900-1100℃; Whitening: 1100-1350℃
|
|
Kiln Inclination
|
1.2% – 3.0% Adjustable
|
|
Rotating Speed
|
0.3 – 3.5 r/min Stepless frequency conversion adjustment
|
|
Applicable Fuel
|
Natural gas, diesel, coal powder, multi-fuel optional
|
|
Thermal Efficiency
|
≥90% With full waste heat recovery system
|
|
Finished Product Whiteness
|
High whiteness, no yellowing, stable mineral phase
|
|
Core Function
|
Kaolin drying, dehydroxylation, crystal transformation, high-whiteness calcination
|
|
Applicable Industry
|
Papermaking, coating, ceramic, building material, chemical industry
|
|
Core Features
|
Zoned precise temperature control, high whiteness, energy-saving, low damage, environmental protection
|
Get Custom Kaolin Rotary Kiln Solution
Our Kaolin Rotary Kiln adopts exclusive four-stage segmented low-damage calcination technology, perfectly adapting to the delicate physical and chemical reaction characteristics of kaolin clay. With core advantages of precise temperature control, high finished product whiteness, energy-saving operation and stable batch quality, it provides reliable core equipment support for global high-end kaolin deep processing projects, helping customers improve product grade and comprehensive economic benefits.
Contact us now for free process design, model selection and accurate turnkey quotation!
